Electrical Line Shaft Els Plastic Roll Rotogravure Printing Machine
Basic Info.
Model NO.
DGAY800ES
System Supported
Electrical Line Shaft
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Printing Interface
Computer Control
Applicable Material
Film, Paper, Plastic
Arrangement Position of Color Groups
Combined Gravure Press
Usage
Flexible Packaging Gravure Printing Machine
Feeding Mode
Web Gravure Printing Machine
Automatic Grade
Automatic
Color & Page
Multi-Colour Printing Press
Structure
Platen Press
Frame
Iron
Color
White
Width
800, 1100, 1200mm
Unwinding Diameter
600
Rewinding Diameter
600
Style
Intaglio Printing Press
Printing Cylinder Diameter
100-400mm
Printing Cylinder Width
420-850mm,
Suitable Material
BOPP, Pet, PVC, CPP, PE
Speed
250m/Min
Power
280kw
Weight
45000kg
Dimension
20000*3600*3200
HS
84431700
Transport Package
Film Packing
Specification
SGS, CE
Trademark
Deguang
Origin
China
HS Code
84431700
Production Capacity
10 Sets/Month
Product Description

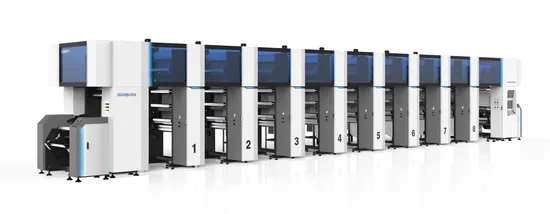

Electrical Line Shaft ELS Plastic Roll Rotogravure Printing MachineApplication:
This machine is suitable to print bopp, pet, cpp, pe, pvc, nylon, paper etc.,
it is widely used in soft packaging like food bag, shopping bag, shrink sleeve label etc.
Feature: 1. Electrical line shaft controlling system, each printing unit, infeed and outfeed are
driven by independent servo motor 2. Chassis without connection which is stable during high speed running
3. Unwind and rewind each controlled by two servo motor, automatic splicing
4. Infeed and outfeed controlled by servo motor 5. Horizontal and vertical automatic register, video inspection monitor installed
at both unwinder and rewinder side which is convenient for operation 6. Each printing unit is equipped with ink transfer roller 7. Equipped with movable ink tank cart which is convenient for ink exchange, ink tank
and inner side of frame are pasted with Teflon material to avoid cleaning
8. Pneumatic ink circulation, pneumatic doctor blade, pneumatic pressing roller 9. Ground exhaust and side exhaust can effectively recycle smelly air 10. Water cooling and air cooling
11. Floating roller to adjust tension
12. Heating by electric or hot air or gas or thermal oil
Specification:
| Model | DGAY800ES | DGAY1100ES |
| Colors | 8 colors | 8 colors |
| Printing width | 800mm | 1100mm |
| Material width | 830mm | 1130mm |
| Printing material | bopp, pet, cpp, pe, pvc, nylon, paper | |
| Max printing speed | 250m/min | 250m/min |
| Max mechanical speedd | 280m/min | 280m/min |
| Register accuracy | ±0.1mm horizontal and vertical | |
| Unwind and rewind diameter | 600mm | 600mm |
| Paper core diameter | 76mm | 76mm |
| Printing cylinder diameter | 100-400mm | 100-400mm |
| Power | 280kw | 280kw |
| Weight | 42000kg | 45000kg |
| Dimension | 20000*3600*3200mm | 20000*3900*3200mm |
Printing sample:
Machine detailes:
Certification:
Our company:
Workshop:
CNC facility:
Packing and shipping:
Exhibition:
