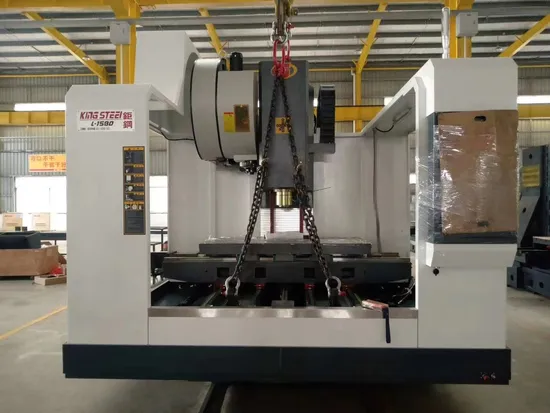

L-1580 Taiwan Brand CNC 3, 4, 5-Axis Milling and Vertical Machining Center

Product Description

Product Description
L-1580 is designed for mass production of auto parts,
electronic communication parts, aerospace parts, medical equipment processing, mold rough processing and precision processing and so on.

The X and Y axis adopt linear slide rails, and the Z axis
adopts hard rails, which have high rigidity, low noise and
low friction characteristics, which can make rapid
displacement and obtain the best circular tracking
accuracy. Rapid displacement X,Y axis 36m/min, Z axis
18m/min.
Product Parameters

Technical Data
Worktable	Length x width	1600x800mm
	T-slot (Width x No. x Distance)	22mmx7pcsx110mm
	Max. loading weight	1600kgs
Travel	X axis travel	1500mm
	Y axis travel	800mm
	Z axis travel	700mm
	Spindle nose to worktable	150-850mm
	Spindle axis to column guide	560mm
Guide ways	X linear wide/numbers/blocks	55mm roller/2pcs/6pcs P grade
	Y linear wide/numbers/blocks	45mm roller/4pcs/8pcs P grade
	Z hard guides numbers	2 pcs
Screws	X/Y/Z screw specific	5010/5010/5010 C3 grade
Spindle	Belt spindle speed	8000rpm
	Spindle motor power	15/18.5KW
	Spindle taper	BT50
	No.of front bearings	NSK 4 pcs
	No.of rear bearings	NSK 2 pcs
3 Axes	X/Y/Z motor power	3/ 3 / 3Kw
Feed	X/Y/Z feed speeds	20/20/15m/min
	X/Y/Z cutting feed	1-10000mm/min
Accuracy	Positioning accuracy	0.012mm Acc. VDI 3441 Std.
	Repeatability	0.006mm Acc. VDI 3441 Std.
Working conditions	Electricity	3Ф380V,50HZ,35KVA
	Temperature	0-40ºC
	Relative humidity	≤90%
	Air pressure	5-6 bar and 0.2m³/min
Dimension& Weight	Approx. outer dimensions	4255x3605x3380mm
	Approx. weight	12500kgs

Certifications

Company Profile
At present, our company has a series high-speed precision engraving and milling
machines, drilling and tapping machines,
horizontal machining centers, high-speed vertical machining centers, gantry machining centers, and 5 axis machining centers and so on.
Strategic Partner

Our Advantages
(1) The company introduces standardized operating procedures, uses world-class testing equipment, is equipped with a high-quality workforce, strict quality standards, and the quality can be traced throughout.
(2) Precision assembling is the most important for CNC machines. Except the excellent
components and casting irons, the carefully correcting are also very important. To ensure the precision of the machine, KING STEEL insists on completing all the assembling by ourselves,
monitoring every detailand each step, and refining the assembly. Each procedure has been strictly tested and recorded before proceeding to the next one.
After Sales Service
7X24 hours
Quick Response Service I.Professional and high-quality service team, perfect after-sales service network
Technical personnels are set up invarious offices to
form a complete after-sales service guarantee system
to ensure that users everywhere can get responses
and solutions to technical problems within 24 hours.
II.VIP customer exclusive service >=100 machines, you can enjoy the service of a
dedicated person in the factory for sales and service,
and respond to needs immediately.

FAQ
Q1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

Q2. Are you a manufactuer or trading company?
A:We are the manufacturer

Q3. Can you do the design for us?
A: yes. if you want a different control system design or higher column, we are available.

Q4 . What is your terms of delivery?
A: FOB Xiamen.

Q5. What's your payment term?
A: T/T OR L/C at sight.

Q6. Can we visit your factory before order?A: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q7: Do you have a stock?A: Yes, most of our machines have stocks to ensures faster shipment times.
