Flat Bed High Precision CNC Machine H32I Lathe with Taiwan Linear Rail

Product Description

Product Description
Flat Bed High Precision CNC Machine H32i Lathe with Taiwan Linear Rail
We are the most professional in making flat bed CNC machine
Product Parameters
H series CNC Lathe machine is an economical, practical type machine tools with high quality.It has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirements.Features :Big torque ,high precision spindleHydraulic shift ,easy operateZ axis feed is directly connected which has high transmission accuracy and high positioning accuracyVertical 4 position electric toolpost with high positioning accuracyStandard configuration:GSK control systemGuideway width 400mmManual chuckManual tailstockOptional Configuration :Siemens or Fanuc systemHydraulic chuckHydraulic tailstockElectric turret /Hydraulic turretAutomatic chip conveyorApplication :CAK series CNC lathe machine is an economical ,practical type machine tools iwth good quality .The machine has a very wide use which is suitable or internal and external turning ,tapering,circular arc ,thread ,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement .

SPECIFICATIONS	Specification	Unit	H32i
	Max.swing over bed	mm	320
	Max.swing over cross slide	mm	70
	Max. Processing length	mm	280
	Max. Bar capacity	mm	40
	Max.processing diameter of plate type of workpiece	mm	320
	Spindle nose type		A2-5
	Spindle bore	mm	48
	Spindle speed range	r/min	50-4000
	Main motor power	kw	3.7
	Chuck form		Hydraulic collet/ chuck
	Chuck size	inch	6
	X axis rapid traverse	M/min	24
	Z axis rapid traverse	M/min	24
	X axis travel	mm	280
	Z axis travel	mm	330
	Guide rail type		Linear rail
	Tool post type		Gang type tool post
	Tool shank size	mm	20x20/dia.25
	Total rated power	kw	6
	Total rated current	A	13
	Machine weight	kg	1400
	Machine dimension	mm	1650X1350X1700

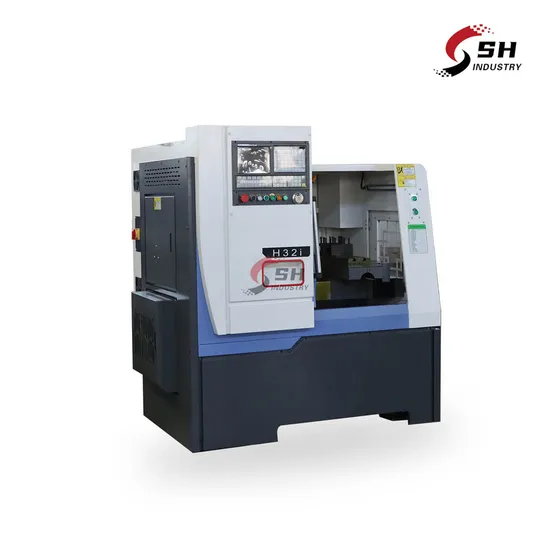

Realistic photos
H series CNC Lathe Machine is an economical, practical type machine tools with good quality.
C The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc,
thread, boring, reaming of axle and disk workpiece.It also can achieve non- -circular curve machining. You
can choose the CNC system and optional accessories according to your requirement.
Detailed Photos

Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
