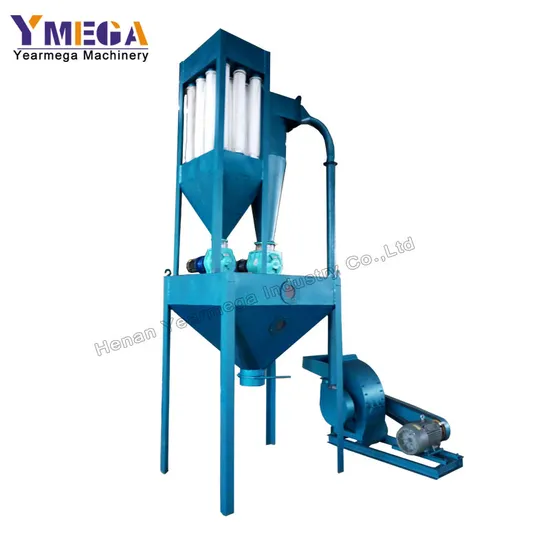

Air Blow Feed Grinding Grains Corn Grinder Machine with Syclone Collector

Product Description

air blow feed grinding grains corn grinder machine with syclone collector
Introduction of Small feed Grinder
The small feed grinding machine, also called small hammer mill or feed crusher is a machine specializing in crushing materials by the collision between the high-speed hammer and materials. For realizing different processing effects, you just need to change the screen with different size holes. It can be used independently or be the first part of fish feed pellet production line.
Main Features of the Small feed crusher
1. Cheap Price. Because of low price and high efficiency, this small grinding machine is the best choice for the farm owner, small and middle size feeding factory or for family use.
2. Easy operation and low energy consumption. This will greatly save your money and time.
3. Wide application. It can process both agricultural materials and pharmaceutical &industrial materials such as corn stalk, peanut shell, dry grass and Chinese medicine crops, coal residue,etc.
4. Simple structure for easy daily maintenance. Good maintenance contributes to long service life of the feed crusher machine.
5. Core part is made of alloy steel to ensure long service life and excellent processing effect.
Main Parameters of Small Feed grinder

Model	Power (kw)	Capacity (kg/h)	Dimension (mm)	Weight (kg)
HM320	5.5-7.5	200-300	1500*800*1050	220
HM420	7.5-11	250-500	1500*930*1250	230
HM500	11-15	400-800	1600*1050*1300	320

We also provide accessory machinery and parts for the feed hammer mill machine, such as rotary feeder, buffering hopper and bin, pluse dust control system, etc. We design the complete feed plant, feed crushing process for small scale or medium, large scale feed factory.
Detailed introduction of the fish feed extruder machine
1. Fish feed machine, also known as fish feed extruder, is used to process various kinds of grains into high-grade aquatic feed pellets for fish, crab, catfish, shrimps, etc.
2. This fish feed machine has gained popularity in fish farmers.
3. This machine is suitable for small and medium aquatic farm or feed pellets processing factory.
4. Compared with buying fish feed, making your own fish feed pellets by the floating and sinking fish feed extruder is really cost effective.
5. Aquaculture feed pellets have wonderful taste and high nutrition.
6. The size of pellet aquaculture feed made by this fish feed extruder can be adjusted according to your need.
Features of the fish feed extruder machine.
1. Novel design, high output and stable performance.
2. Main parts are made of special alloy material after heat treatment.
3. High wear resistant degree and long service time.
4. This dry type fish feed machine is suitable for small fish feed plant and professional farmers.
5. Final processed aquatic feed pellets have unique taste and high nutritious.
6. Low energy cost, high capacity, easy to maintain.
7. Diameters and shapes of fish pellets can be adjusted by choosing different molds.
8. Salmonellas and bacterial infections can be killed by high temperature and high pressure process.
9. Feed pellets produced by this fish feed machine of puffing type, thus making it more easily to digest for fishes.
Specification of fish feed extruder

Model	Capacity	Main power	Feeding power	Screw diameter	Cutting power
DGP50	60-80kg/h	11kw	0.4kw	φ50mm	0.4kw
DGP60	100-150kg/h	15kw	0.4kw	φ60mm	0.4kw
DGP70	180-250kg/h	18.5kw	0.4kw	φ70mm	0.4kw
DGP80	300-350kg/h	22kw	0.4kw	φ80mm	0.6kw
DGP90	400-450kg/h	37kw	0.4kw	φ90mm	1.5kw
DGP120	0.5-0.7t/h	55kw	0.4kw	φ120mm	2.2kw
DGP135	0.8-1.0t/h	75kw	0.4kw	φ133mm	2.2kw
DGP160	1.2-1.5t/h	90kw	0.75-1.1kw	φ155mm	3.0kw
DGP200	1.8-2.0t/h	132kw	1.5kw	φ195mm	3.0-4.0kw

Fish feed and shrimp feed Aquatic feed line from China process:
Description of the Fish feed and shrimp feed Aquatic feed line from China

No.	Process	Machine	Description
1	Crushing	Crusher/Hammer mill	To crush the raw materials such as grains into flour/powder
2	Mixing	Mixer	To mix different flour materials together and evenly
3	Extruding and pelleting	Fish Feed Extruder	To make fish feed pellet, the material is processed by high temperature and pressure and pelletized into round pellets, suitable for feeding fish, we could produce both floating fish feed and sinking fish feed.
4	Drying	Dryer	To dry the fish feed pellets coming from the extruder
5	Cooling	Contraflow Cooler	To cool the fish feed pellets, the fish feed pellets could be stored for a long time.
6	Flavoring	Rotary flavoring machine	To seasoning the fish feed, spray oil and other liquid additives on the surface of fish feed pellets, make the feed more delicious.
7	Packaging	Automatic Packaging machine	To pack fish feed pellets into bags, easy for store, transportation and for sale in the market.

Packing and shipping
The feed grinding machine would be covered by plastic, and then packed in standard ply wooden package for exporting.
Our Services

1	We provide 1 year guarantee with life-time service.
2	We provide English manual and video for operation
3	If required, we could send technicians for installation and commissioning, training.
4	Any problem in operation or others about the machine, you can contact with us we will give solution in 24-48 hours. If big problem, we can send technician to customer's local place.

If you have interest in this air blow feed grinding grains corn grinder machine with syclone collector, kindly please contact us and send inquiry.
