Affordable Diesel Micro Excavator Compact Mini Digger Construction Machinery
Basic Info.
Model NO.
SZ15
Type
Crawler Excavator
Usage
Special Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Hydraulic
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE
Condition
New
Fuel
Diesel
Weight
950kgs
Max Bucket Capacity
0.023cbm/120kgs
Bucket Width
410mm
Wheelbase
960mm
Total Langth of Track
1220mm
Platform Ground Clearance
350mm
Platform Back Turning Radius
810mm
Chassis Width
870mm
Track Width
180mm
Chassis Ground Clearance
94.5mm
Transport Package
14PCS /40 FCL
Specification
2300*960*2250mm
Trademark
sanzeo
Origin
Shandong
HS Code
8429521100
Production Capacity
10000PCS
Packaging & Delivery
Package Size
220.00cm * 93.00cm * 225.00cm
Package Gross Weight
1050.000kg
Product Description
Product Description| Model SZ15 | |||
| Specification | Chassis ground clearance/mm | 94.5 | |
| Fuel model | Diesel | Chassis width/mm | 870 |
| Digging bucket capacity | 0.023cbm/120kg | Rubber track height/mm | 310 |
| Digging bucket width | 410mm | Track width/mm | 180 |
| Overall Dimensions(L*W*H)/mm | 2300*960*2250 | Platform back turning radius/mm | 810 |
| Wheelbase/mm | 960 | Platform ground clearance /mm | 350 |
| Total length of track/mm | 1220 | HS CODE : | 8429521100 |
| Overal weight | 950kg | Warranty: | 1 year |
| Technical paremeters | Operating range | ||
| Engine horsepower | 16 | Max.Digging depth/mm | 1800 |
| Egine brand | YOUPU 2V80 | Max.Digging height/mm | 2820 |
| Engine speed | 3000rpm | Max.Digging radius /mm | 3050 |
| Fuel consumption | 1-1.3L | Min Rotation radius/mm | 1450 |
| Hydraulic tank capacity | 16L | Max.Upgrade height/mm | 180 |
| Diesel tank capacity | 10L | Max.Digging depth /mm | 210 |
| Engine cooling mode | water-cooling | Boom deflection angle (left) | 30° |
| Bucket digging force/kn | 9.7kn | Boom deflection angle (right) | 90° |
| Arm dingging force/kn | 8.6kn | ||
Optional

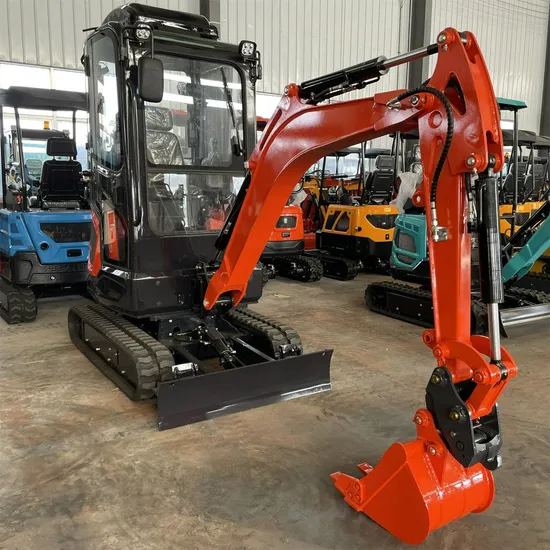

Detailed Photos
FAQ
How long is your lead -time ? 20 working days after deposite. 2.What worranty you should offer?
6 months after delivered destination. 3Do you have stock ?
Depends,some standard truck we have the stock ,but some offstandard we offer in requirment. 4.Shall you do OEM?
Definitely yes, we should do . 5.Shall I customized the color?
6.Sure, you should choose yellow,red,blue white and the color you prefer.
7.What advantages of SANZEO ?
independent research and development,from outlooking design to the mechanics 8.When shall i visit your factory?
Anytime you get ready,you just inform me the date and the final arriving port where i should pick you . 9.Why i choose SANZEO instead of other brand?
SANZEO is the manufacturing offered the products to the Foreign Trading company last 8 years .we know the global quality requirement well and we have the people English well known people taking care your requirements from PRESALE till to AFTERSALE.
