Kc229 Digital Winding Machine Automatic Yarn Winder for FDY DTY

Product Description

Product Description

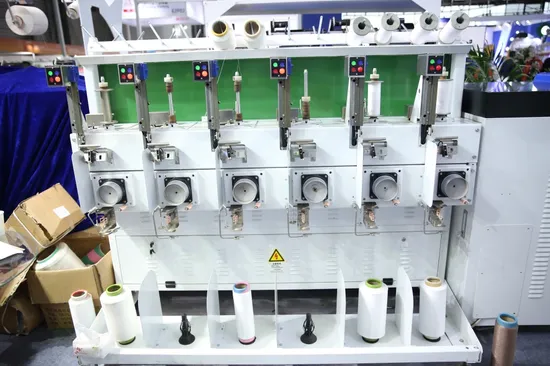

KC229 Precision High Speed Silk Winder
Suitable for ultra-fine denier chemical filament yarns such as FDY, DTY and so on, to precision wind for later processes in air covering or two-for-one twisting.
Features
A. Used for precisely winding yarn packages where stroke length is electronically adjusted so that a variety of bobbins can be conveniently be used. Package shape and density can be guaranteed;
B. The digital programmable intelligent touch screen control enables yarns to be precision wound at highest winding speeds;
C. The intelligent tension control system together with an automatic tracking system of the overfeed guarantees optimized yarn package formation;
D. The encoder detection control system and the positional length calculating system contributes to the uniformity of yarn production;
E. Each position is driven by a brushless DC motor which can be individually stopped and started for best operating flexibility.
This reduces the power consumption and at the same time improves production efficiency.


Product Parameters

Machine structure	Double sides single layer, 12 spindles per section
Drive	Single motor drive
Traverse length	100mm~160mm (It can be changed according to actual situation)
Rated power	300W/spindle
Slice angle	0°~60°
Type of tension	Electronic online tension

KC229: Applied for FDY, DTY;
Spindle gauge: 300mm;
Type of winding: digital or precision parallel winding;
Linear speed: up to 1200m/min ( depend on the process parameters );
It is designed as the same winding technology as European Brands but was developed and programmed by ourselves. The functions of our machines are identical with European Brands and our technology ensures well controlled winding. And some of our spare parts is compatible to European Brands, such as guiding motor, sensor and angle transducer.

After Sales Service
For demo machine set:
Spindles +Independent Machine headstock
Wooden case packing;
*provide the spare parts;
*Gurantee: one year;
*Provide remote installation or door-to-door installation service;
*Provide after sales service;
*Welcome to visit our factory;
Certifications
ISO9001; ISO14001; ISO45001; CE;
Company Profile
Zhejiang Kaicheng lntelligent Machinery Co., Ltd. is a national high-tech enterprise dedicated to manufacturing intelligent winders and twisters, and also researching, developing automation control software for high-end textile machinery. Kaicheng insists on technological innovation as its core competitiveness of the enterprise. We focus on researches in the field of twisting and winding technology, and keep up with international level especially some famous brands from Europe. We are the best choice and replacement for European brands. Kaicheng products are being sold not only in China but are exported to Southeast Asia, West Asia and North-America, Central and South America, as well as Europe. Kaicheng has set up full set of advanced processing equipment and technology research centers to take its research activities. Moreover, Kaicheng has established long-term cooperation relations with Donghua University, Wuhan Textile University and other universities; "Modern Textile Machinery Research Institute" and "Postgraduate Training Base" was co-established by Zhejiang Kaicheng Intelligent Machinery Co., Ltd.& Zhejiang Sci-tech University in year of 2020.
