Electric Micro Diaphragm Air/Liquid/Gas Solenoid Valves for Medical Devices
| Negotiable | 5 Pieces (MOQ) |
Basic Info.
Model NO.
1013 Series Diaphragm Solenoid Valves
Actuator
Electric
Connection Form
Base-Mounted, Tubular, Threaded
Type
Rocker or Direct Acting Diaphragm
Material
Peek
Pressure
-75kpa~250kpa
Valve Structure
Direct Action Diaphragm Structure
Power Supply
DC Solenoid Valve
Usage
Flow Control
Standard
GB
Application
Industrial Usage, Water Industrial Usage, Medical Device Usage
Valve Construction
Rocker Type or Direct-Acting Type Diaphragm Valve
Valve Type
2-Way N.C., 2-Way N.O., 3-Way
Number of Ports
2 Port, 3 Port
Orifice Diameter
1.5mm
Flow CV
0.03, 0.018
Proof Pressure
0.3MPa
Leakage Rate
0 (at Water Pressure)
Response Time
<20ms
Rated Voltage
DC: 24V/12V
Transport Package
Customized Package
Specification
CE, RoHS
Trademark
Keyto
Origin
China
HS Code
8481802190
Production Capacity
500, 000 PCS/Year
Product Description

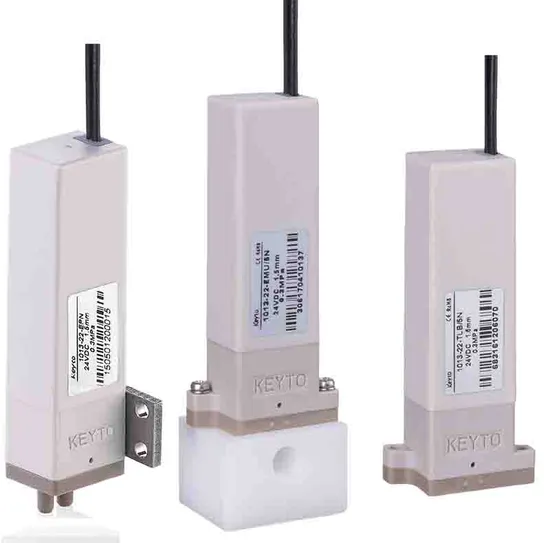

Electric Micro Diaphragm Air/Liquid/Gas Solenoid Valves for Medical DevicesThe 1013 series solenoid Diaphragm valve is independently researched, developed, manufactured, and produced by Keyto. It is designed to control the on-off flow of liquids and comes in two structures: rocker type and direct-acting type. This valve can withstand different reagents under various conditions and has an operational lifespan of over 5 million cycles. It is a high-performance, cost-effective, and maintenance-free diaphragm solenoid valve.
| Valve construction | Rocker type diaphragm valve | Direct-acting type diaphragm valve | ||
| Valve type | 2-way N.C. | 2-way N.O. | 3-way | 2-way N.C. |
| Number of ports | 2 | 2 | 3 | 2 |
| Orifice diameter | 1.5mm | |||
| Flow CV | 0.03 | 0.018 | ||
| Mediums | Water, Air, Weak Acids, Weak Alkalis (specific withstand medium is determined by the solenoid valve diaphragm and valve cover) | Strong Acids, Strong Alkalis, High-temperature Fluids, Air, Organic Solvents, etc. | ||
| Ambient temperature | 5ºC~40ºC | |||
| Operating pressure range | -75kpa~250kpa | -70kpa~200kpa | ||
| Proof pressure | 0.3MPa | |||
| Leakage rate | 0 (at water pressure) | |||
| Response time | Standard type: <50ms Low power type: <20ms | <30ms | ||
| Rated voltage | DC: 24V/12V | |||
| Allowable voltage fluctuation | ±10 % of rated voltage | |||
| Power | Standard type: 24V 2.8W, 12V 3.4W Low power type: 1.8W | |||
| Power saving circuit | Power consumption after the external connection is about 0.8W (optional) | / | ||
| Type of coil insulation | Class F | |||
