Hot Sale Factory Price Low-Cost CE RoHS Approved Link Test Pass CAT6 UTP LAN Cable

Product Description

Network cable LAN cable CAT6 UTP 23AWG ethernet network cable, ethernet cable 8p8c foil shielded, ground wires, 305m/box, PVC/LSZH jacket, 250/500 MHz, network link Test pass 90m.
Certification: UL, ETL, CE, RoHS, REACH, ISO9001
Quality warranty. Network Link Test Pass, UL, ETL, CE, RoHS, ISO9001 approved ! Construction (CAT6 UTP (U/UTP)) Conductor: Solid bare copper / CCA Diameter: 0.57mm / 23AWG
Insulation: PE Average thickness ( +/-0.03mm): 0.24mm
Insulation Dia ( +/-0.03mm): 1.01mm Min point thickness: 0.2mm
Cross:
Jacket: PVC or LSZH Average thickness: 0.55
Outer Dia( +/-1.0mm) 6.2 Min point thickness: 0.53
Rip cord: YES Core color:
Pair 1: Blue - white/blue Pair 2: Orange - white/orange
Pair 3: Green - white/orange Pair 4: Brown - white/brown
Application 1000BASE-T Gigabit Ethernet 500MHz Broadband Video 10BASE-T, 100BASE-T Fast Ethernet (IEEE 802.3) Voice, T1, ISDN 100 VG - AnyLAN(IEEE802.12), 155/622 Mbps ATM Patch Cord Standard Compliances All Category 6 Requirements as Per ANSI/TIA/EIA, ISO/IEC, and CENELEC EN Standards:
ANSI/TIA/EIA 568-B.2 2ND Edition ISO/IEC 11801 Class D
CENELEC EN 50173-1 IEC 61156-5, CENELEC EN 50288-2-1 Horizontal Cable
Flame Retardancy is Verified According to IEC 60332-1
Electrical Performance (2500MHz)
1.0-100.0MHz Impendance(ohms) 100+/-15 1.0-100.0MHz Impendance delay screw(ns/100m) <45
Pair to Ground Capacitance Unbalance (PF/100m) 330Max Conductor DC resistance 20%(ohms/km) <72
Resistance Unbalance(%): 5 Spark Test 850 V AC
Dielectric Strength 2500 V DC / 3 seconds Insulation Resistance Test Min. 150 MΩ /Km
Conductor Resistance Max. 9.38Ω /100m at 20 Resistance Unbalance Max. 5%
Capacitance Unbalance Max. 330 pF/100m Mutual Capacitance Max. 5600 pF/100m
Network Link Test Reports (CAT6 0.51mm Copper)
Characteristics 1.0-100.0MHz Impendance(ohms) 100+/-15 1.0-100.0MHz Impendance delay screw(ns/100m) <45
Pair to Ground Capacitance Unbalance (PF/100m) 330Max Mutual Capacitance Max. 5600 pF/100m
Conductor DC resistance 20%(ohms/km) <93.8 Resistance Unbalance(%): 5
Spark Test 850 V AC Dielectric Strength 2500 V DC / 3 seconds
Insulation Resistance Test Min. 150 MΩ /Km Capacitance Unbalance Max. 330 pF/100m
Test object: Jacket Test Material: PVC, PE, LSZH
Before Tensile strength(Mpa): >=13.8 Aging Elongation ((%): >=100
Aging condition(C xhrs): 100x240 After Tensile strength(Mpa): >=85% of unaged
Aging Elongation(%): >=50% of naged Standard Compliance
All Category 5e Requirements as Per ANSI/TIA/EIA, ISO/IEC, and CENELEC EN Standards:

Electrical Characteristics
Impedance : (1-100MHz) 100±15Ω					Delay Shew (ns/100m) ≤ 25 ns/100m
	(100-250MHz) 100±18Ω				Velocity of Propagation (%) = 74%
	(250-600MHz) 100±25Ω				Unbalanced-to-ground capacitance ≤ 330pf/100m

Transmission Properties:

Frequency [MHz]	1	10	16	20	31.25	62.5	100	300	600
Typical values (attenuation) [db/100m]	1.8	5.2	6.8	7.7	9.6	13.8	17.5	31.5	45.0
Typical values (NEXT) [db/100m]	>100	>100	>100	>100	>100	>100	98.0	93.0	89.0
Typical values (PSNEXT) [db/100m]	98.0	98.0	98.0	98.0	98.0	98.0	96.0	91.0	87.0
Typical values (ELFEXT) [db/100m]	93.0	93.0	93.0	93.0	90.0	86.0	84.0	65.0	45.0
Typical values (PSELFEXT) [db/100m]	91.0	91.0	91.0	91.0	88.0	84.0	82.0	63.0	43.0
Typical values (RL) [db/100m]	26.2	34.7	36.3	35.7	36.3	36.1	36.1	31.7	27.5
Typical values (ACR) [db/100m]	98.2	94.8	93.2	92.3	90.4	86.2	80.5	61.5	44.0

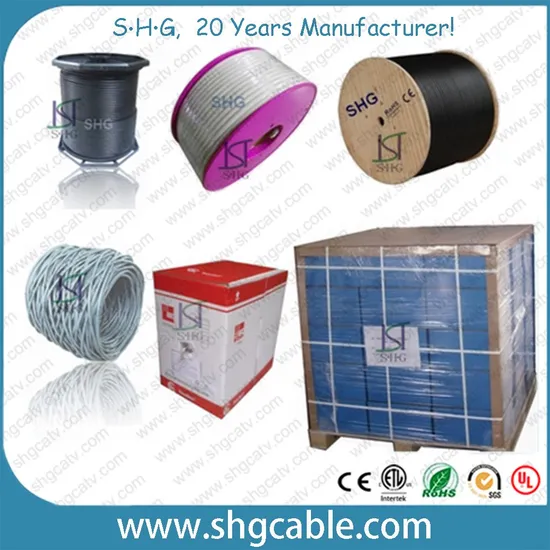

Package 305m or 152.5m pull box, other length in plastic reel or wooden reel available upon request.
Why choose us - advanced production line & management system
We, SHG produce the quality, we focus on quality in our over 20 years growing.
Certificates CE, RoHS, UL, ETL, ISO9001 ISO9001:2008, CE, RoHS, REACH
Why Choose us Our Advantages
FAQ FAQ Q1: Are your company factory?
SHG: Yes! SHG is a group company, we have 4 factories, and Lin'an Longshine handling import and export for SHG group. Q2: Do you company offer OEM service?
SHG: Yes! OEM available, your logo & reference on products & package available.
Q3. What's your products lead time?
SHG: Some are on stock, lead time is 2 days; some are not on stock, usually it take 7-25 days after order confirmed (deposit received). Q4. Where is your nearest sea-port and airport? SHG: The nearest sea-port is Ningbo, Shanghai.
The nearest airport is Shanghai, but we also can delivery from other airport like Shenzhen. But will need add some additional local transportation charge.
Q5. What's your Payment Term? SHG: We perfer T/T. 30% T/T in advance as deposit, balance upon copy of B/L or prior shipment depend on delivery method.
Q6. Quality and Reputation: SHG: SHG highly care of our reputation, we offer quality product, earn trust from our worldwide customers. Only customers are satisfied with our products and services, then we will feel happy & honor. We care of long term partner relatioship, not one-time business. We aim to cooperation, friendship.
