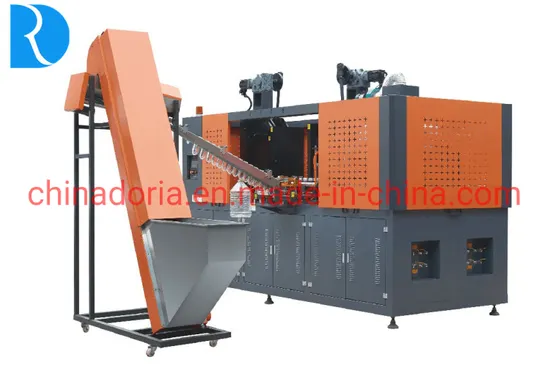

1cavity Automatic Blow/Blowing Molding Machine for 4L Water Bottle

Product Description

Specification of D-R601(3-5L)Automatic blow moulding machine
https://chinadoria.en.made-in-china.com/product-list-1.html
(Pneumatic assembly drawing)
(Electrical assembly drawing)
1. One cavity high speed PET blow moulding machine with linear style-Max capacity: 5L
D-R601 is a two step rotation style PET Automatic blow moulding machine with auto-loader. One cavity D-R601 machine is suit to blow any PET, PC etc. bottle.
2. Details of D-R601machine:
2.1 D-R601 machine is with automatic human-computer interface, easy operation, stable operation, little fault, fast speed blowing.
2.2 D-R601 machine is adopted all parts by precision machining.
2.3 D-R601 machine is adapted to continuous auto-loader with high speed and efficient.
2.4 The oven of D-R601 machine is with high speed and balance heating.
2.5 The chain of oven is imported by Japan with strong durability.
2.6 The bottleneck of D-R601 machine is with blowing cooling which could provide better protection for screw of PET preforms.
2.7 D-R601 machine is with powerful and stable operation pneumatic type clamping mechanism. The machine is also adapted to pneumatic system to stretch preforms which is with high speed and exact route stretching.
2.8 The blow (row) system is German with high speed blowing (rowing) and long life.
2.9 D-R601 machine could convey the bottles to filling line directly with novel design convey.
3. Main process of machine is
Auto feeder resin--infrared heating--auto blow bottle--bottles go down auto;
4. Specification of D-R601machine:

Type	Item	D-R601
Bottle Specification	die cavity	1 cavity
	output	600-900PCS/H
	Max. capacity	5L
	Max. outer diameter of bottleneck	80mm
	Max. diameter of bottle body	180mm
	Max. height of bottle body	350mm
electricity specification	lamp	60pcs
	Max. heating power	100kw
	total electricity for installing machine	100kw
	practical power consumption	20kw
pressure specification	work pressure	7-9kg/cm2
	gas consumption of low pressure	2000Ltr/min
	blowing pressure	25-35kg/cm2
	gas consumption of high pressure	4500-5000 Ltr/min
chilled water specification	work pressure	5-6 kg/cm2
	work pressure	10ºC
	consumption	6600 kca/hr
	chilled water rate	45 Ltr/min
machine specification	machine size	5.6x2.1.x2.1(m)
	auto-loader size	1.0*1.5*2(m)
	machine weight	5.5T

5. Main items of machine:

Item	Product name	Origin	Brand
electric/control element	Air switch	France	Schneider
	Intermediate relay	France	Schneider
	Contactor	France	Schneider
	optoelectronic switch	Japan	OMRON
	touch screen	China	XINJIE
	PLC	China	XINJIE
	touch screen	Taiwan	MEANWELL
valves/contacts	high pressure blowing valve	USA	Parker
	action valve	Japan	Yuken
	pneumatic quick contact	German
	action valve	Japan	Yuken
	opening and closing mould cylinder	German
	stretch cylinder	German
	pressing preform cylinder	German
	auto-loader lifting cylinder	Japan	SMC
	auto-loader rotation cylinder	German
	mechanical arm air-operated	Taiwan	Jinqi
	sealing cylinder	China	Ribo

6. Pictures of D-R601:
7. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us, we hope we will have good chance to cooperate!
