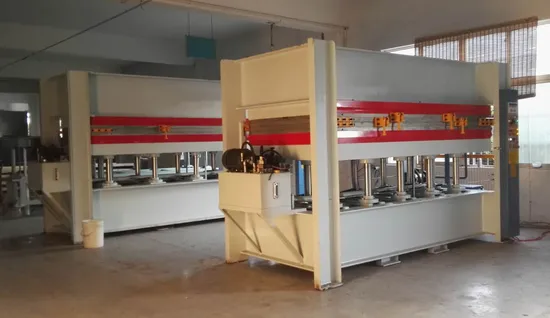

100t 2 Layers Hot Press Machine for Wooden Door

Product Description

Product Description
ApplicationApply for furniture, wooden door factory, man-made board production manufacturers secondary processing face, used to hot glue furniture plate, building partition door, fire door surface materials, wood veneer.In man-made board, plywood, joinery board, MDF, particle board, surface pressure on all kinds of decorative materials, decorative cloth, wood veneer, PVC, etc., can also be used for veneer drying, leveling, color decoration wood leveling, finalize the design, the effect is remarkable.
FunctionHydraulic hot press, mainly with the temperature selection, technical control and processing of product quality and so on. The traditional heating method, usually the choice of steam heating and electric heating of the two, the former simple.
Board temperature is not uniform and other issues, while the latter, there are large power consumption, operating costs of high-level features. Later, there are heating oil heating and other methods. This heating method, its high heat capacity, uniform temperature and heat loss.
So that it can reduce the production cost and be able to reach the desired hot pressing effect.Features1.The control panel is automated and easy to operate. It can be operated by one person and saves labor costs.
2.Well-known electronic components are more stable and can be used for a long time.
3.Hydraulic balance device, make the machine movement more stable and quickly.
4.Heating system,heating pipe,fast heat conduction to each layer.
Detailed Photos

Product Parameters

Model No.	MH3848x100Tx1	MH3848x100Tx2	MH3848x100Tx3
Platen size	2500*1300*42mm	2500*1300*42mm	2500*1300*42mm
Max. Pressure	100T	100T	100T
Max. Platen opening	300mm	300mm	100mm
Layers quantity	1 layer	2 layers	3 layers
Oil cylinder	85mm x 8pcs	85mm x 8pcs	85mm x 8pcs
Hydraulic motor power	4kw	4kw	4kw
Hot oil pump power	1.5kw	1.5kw	1.5kw
Heating pipe power	18kw	36kw	45kw
Overall dimensions	3700x1660x2100mm	3700x1660x2100mm	3700x1660x2100mm
N.W	4900kgs	5900kgs	7000kgs

Packaging & Shipping
After passed the quality inspection, the machine will be wiped with biodegradable anti-rust oil to protect from the humid sea air. Then use PE film packaging.

FAQ
1) Q: What's the MOQ?
A: One set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can.
3) Q: What's the payment terms?
A: T/T 30% as deposit and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. KINGMARKS is our brand.
5) Q: How long is the warranty period?
A: One year except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
