Unmanaged Full Gigabit Poe Switch Module Has 2 Full Gigabit Adaptive Electrical Ports Switch PCBA

Product Description

Product Description The LX-SG402 series is a non managed full gigabit PoE switch module independently developed by Lite On Electronics, which has 2 full gigabit adaptive electrical ports and 2 gigabit adaptive electrical ports. Among them, ports 3-4 support IEEE 802.3af/at standard PoE power supply, with a single port PoE power of up to 30W, as a PoE powered device, can automatically detect and identify power receiving devices that meet the standards and provide power to them through Ethernet cables. It can supply power to POE terminal devices such as wireless APs, network cameras, network telephones, and visual intelligent building intercoms through Ethernet cables, meeting the demand for high-density PoE power supply in network environments. It is suitable for hotels, campuses, parks, scenic spots, supermarkets, factory dormitories, and small and medium-sized enterprises to build economical and efficient networks. Non network management models, plug and play, no need for configuration, easy and convenient to use;

Key characteristics
Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, and IEEE802.3af/at standards. Four 10/100/1000 Base-T PH2.08PIN ports (Data/Power). 4K MAC address and MAC address automatic learning. 10 Gbps non blocking line speed forwarding backplane bandwidth. Optional standard POE power supply, maximum output power per PoE port: 30W. External power supply DC 5-52V, standard POE power supply requires 48-52V. Module PCBA size: 52 * 80 * 16mm. Product Characteristics
Full Gigabit Access, Gigabit Optical Uplinks Supports Gigabit Ethernet ports for flexible networking to meet various scenarios; all ports support non-blocking wire-speed forwarding for smoother transmission. Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control. Optional intelligent PoE power supply function Two 10/100/1000Base-T PH2.08PIN ports support PoE power supply to meet the needs of PoE power supply for security monitoring, wireless coverage of teleconferencing system and other scenarios. The optional standard POE complies with IEEE 802.3af/at PoE power supply standard and automatically recognizes PoE devices for power supply without damaging non-PoE devices. The maximum PoE output power of a single port is 30 W. PoE ports support the priority mechanism, when the remaining power is insufficient, the power supply of high-priority ports will be given priority to avoid overloading of equipment. Plug and play without configuration Supports 10/100/1000M adaptive PH2.08PIN ports, each port supports MDI/MDIX adaptive function Full wire-speed Gigabit switching capability, plug-and-play, no need for management to ensure that all ports are forwarded without blocking. Users can easily know the working status of the device through the power indicator (PWR), port status indicator (Link, L/A), and PoE working indicator. Cache data without loss Adopts store-and-forward mode, provides 10Gbps backplane bandwidth, and high-capacity cache, which effectively reduces data forwarding delay and improves forwarding efficiency to avoid data loss. specifications

Product Specification
Product Model	LX-SG401-1 LX-SG401-1POE
Fixed Port	2 10/100/1000Base-T POE ports (Data/Power) 2 10/100/1000Base-T uplink power ports (Data)
POE Port	3-4 ports support IEEE802.3af/at standard PoE power supply
network protocol	IEEE802.310BASE-T,IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x
Power supply standard	Conformsto IEEE802.3af/at international standards
Port Characteristics	10/100/1000 Base-Tauto-detect, full/half duplex MDI/MDI-X adaptive
Forwarding Mode	Store-and-forward (full wire speed)
Backplane Bandwidth	10Gbps (non-blocking)
forwarding rate	10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or laterUTP(≤100 meter)
Packet Forwarding Rate @ 64byte	9.42Mpps
MAC Address Table	2K
twisted-pair transmission	10BASE-T:Cat3,4,5 UTP(≤100 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter) 1000BASE-T:Cat5e or laterUTP(≤100 meter)
Maximum Single Port/Average Power	(DC5-12V) POE: 15.4W-30W(DC48-52V)
PowerSupply Pins	Support 1/2(+),3/6(-).4-cell power supply
Overall Power Consumption	Standby power consumption:< 3W; Full load power consumption:< 8W POE:Standby power consumption:< 10W; Full load power consumption:< 240W
LED Indicator	Power indicator light: PWR (green); Network indicator light: Link, Link/ACT (yellow); POE indicator light: PoE (green)
Appearance dimensions (L * W * H)	52*80*16mm
Net weight/Gross weight	<<28g/<30g POE: <32g/<35g
work environment
Working humidity	10% -90% RH (non condensing)
working temperature	-40ºC-85ºC
Storage humidity	10% -90% RH (non condensing)
Storage temperature	-40ºC-85ºC
Product Versions
LX-SG402-1	Unmanaged 2 x 10/100/1000M RJ45 ports (front) + 2 x 10/100/1000M RJ45 ports (rear)
LX-SG402-1 Standard POE	Unmanaged 2 x 10/100/1000M RJ45 ports (front)+ 2 x 10/100/1000MRJ45 ports (rear) Of which 3-4 ports support IEEE 802.3af/atPoE international standard power supply

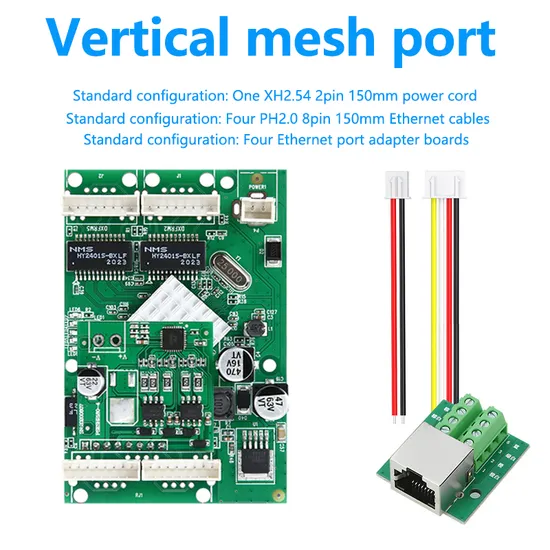

Detailed Photos
