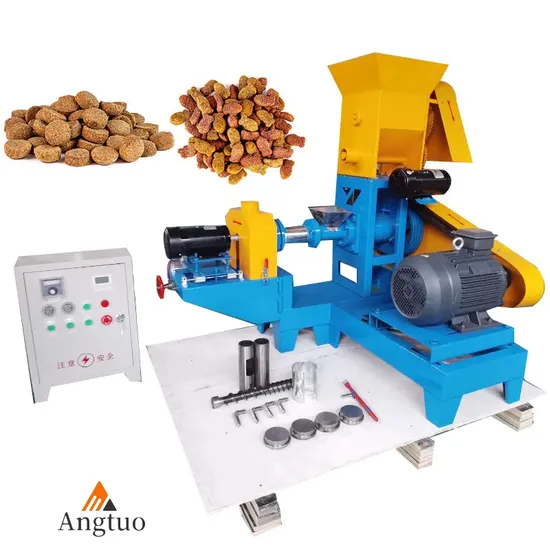

China Fish Feed Making Machine Mill Floating Fish Feed Extruder Machine

Product Description

Product Description
Introduction to Fish Feed Pellet
Fish feed pellets are compact, nutritionally balanced, and energy-dense food for fish farming or aquaculture. These pellets are made by combining raw materials such as fish meal, soybean meal, corn, wheat, and essential nutrients like vitamins and minerals. The mixture is processed and extruded into specific shapes and sizes suitable for different fish species.Fish feed pellets are critical for improving fish growth rates, health, and productivity in aquaculture. They come in two primary types: floating and sinking pellets. Floating pellets remain on the water surface, making it easier to monitor fish feeding activity, while sinking pellets are used for bottom-dwelling fish.
Advantages of the Fish Feed Machine
A fish feed machine is essential for producing high-quality fish feed efficiently and cost-effectively. Here are some of the key advantages:
1. Customizable Feed Composition
Fish feed machines allow users to adjust the feed formulation to meet the specific nutritional needs of various fish species. This customization enhances fish growth, immunity, and overall health.
2. Versatility
These machines can produce different types of feed, including floating, sinking, or slow-sinking pellets, catering to the dietary habits of various aquatic species like catfish, tilapia, and shrimp.
3. Consistent Quality
Fish feed machines ensure consistent pellet size, shape, and nutritional content, leading to uniform fish growth and reducing feed wastage.
4. High Efficiency
Modern fish feed machines are designed for high-speed production, enabling large-scale feed production in minimal time. This efficiency is critical for commercial aquaculture businesses.
Technical information

Model	Capacity (kg/h)	Pellet Diameter	Motor Power	Feeder power	Cutter Power	Screw Rod Diameter
ATYSL-40	30-40	0.5-6mm	5.5kw	0.4kw	0.4kw	40mm
ATYSL- 50	60-80	0.5-6mm	7.5kw	0.4kw	0.4kw	50mm
ATYSL-60	120-150	0.5-10mm	15kw	0.4kw	0.4kw	60mm
ATYSL-70	180-250	0.5-10mm	18.5kw	0.4kw	0.4kw	70mm
ATYSL-80	300-350	0.5-10mm	22kw	0.4kw	1.1kw	80mm
ATYSL-90	400-450	0.5-10mm	32kw	0.4kw	1.5kw	90mm
ATYSL-120	500-700	0.5-12mm	55kw	0.4kw	2.2kw	120mm
ATYSL-135	800-1000	0.5-12mm	75kw	0.4kw	2.2kw	133mm
ATYSL-160	1200-1500	0.5-12mm	90kw	1.5kw	2.2kw	155mm
ATYSL-200	1800-2000	0.5-12mm	132kw	2.2kw	3kw	195mm

Types of Fish Feed Extruder Machines
Fish feed extruder machines come in various types, each designed for specific applications and production needs. Here are the main types:
1. Single-Screw Extruder
Suitable for small to medium-scale production.
Produces both floating and sinking pellets.
Cost-effective and easy to operate, making it ideal for small farms.
2. Twin-Screw Extruder
Designed for high-capacity production and complex feed formulations.
Provides better control over pellet texture, size, and density.
Ideal for large commercial operations or producing specialized feed types.
3. Dry-Type Fish Feed Extruder
Operates without the need for a steam boiler or conditioner.
Suitable for small-scale or medium-scale production.
Cost-effective and easier to maintain compared to wet-type extruders.
4. Wet-Type Fish Feed Extruder
Requires steam conditioning to process the feed.
Produces high-quality feed with better gelatinization and nutrient availability.
Ideal for large-scale operations that demand consistent and durable pellets.

Fish Food Machine Instructions
Using a fish food machine properly is critical for ensuring optimal performance, product quality, and machine longevity. Here are detailed instructions for operating a fish feed machine:
1. Preparation
Check the Machine: Inspect the machine for any loose parts, wear, or damage. Ensure all components are securely attached.
Prepare Ingredients: Ensure all raw materials are clean, free from contaminants, and pre-ground if required.
Set Parameters: Adjust the machine settings, including temperature, pressure, and pellet size, based on the feed formulation and type of pellet desired.
2. Startup
Power On: Turn on the power supply and ensure all components are functioning properly.
Preheat (if required): For wet-type machines, preheat the steam boiler and condition the feed mixture.
Test Run: Conduct a test run with a small quantity of feed to ensure the settings are correct.
3. Operation
Feed the Machine: Gradually feed the raw material mixture into the machine hopper to avoid clogging.
Monitor the Process: Observe the machine during operation to ensure consistent output and detect any irregularities.
Adjust Settings: If necessary, fine-tune the settings to achieve the desired pellet quality and size.
4. Post-Operation
Turn Off the Machine: Once production is complete, power down the machine and disconnect it from the power source.
Clean the Machine: Remove leftover materials from the hopper, screws, and dies. Clean all parts thoroughly to prevent contamination.
Inspect for Wear and Tear: Check the screws, dies, and other components for signs of wear and replace them if needed.
5. Maintenance
Lubricate Components: Regularly lubricate moving parts to ensure smooth operation.
Replace Worn Parts: Replace damaged or worn parts promptly to maintain efficiency and avoid breakdowns.
Schedule Professional Servicing: For large-scale machines, schedule regular servicing by a professional technician to maintain optimal performance.
Packaging & Shipping
After Sales Service
Our company offers a comprehensive after-sales service package to ensure that your bean sprout machine continues to run smoothly and efficiently for years to come:
1.Installation and setup: We provide professional installation and setup for all machines, ensuring everything is configured correctly and ready to go.
2.Training and support: Our team provides training to operators to ensure they understand how to use the machine effectively and safely. We also provide user manuals, troubleshooting guides and ongoing support via phone or email.
3.Warranty: All of our bean sprout machines come with a warranty period, during which we provide free repairs and replacements for any manufacturing defects.
4.Technical support: We provide 24/7 technical support to assist you with any operating issues or queries related to machine performance.
Company Profile


FAQ
Q1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.
Q4: How do you work your after sales service?
A4: Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately. And You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/ fax/ tel and lifetime technical support.
Q5: How about the spare parts?
A5: After we deal down all the things, we will offer you a spare parts list for your reference.
