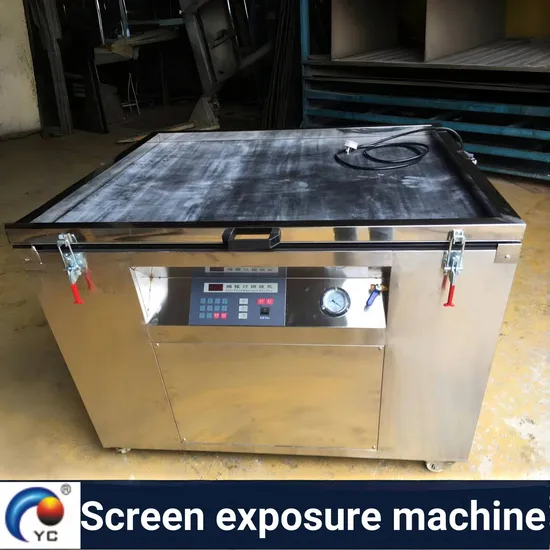

Precision Screen Exposure Machine for Screen Printing
| US$1,130.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YCME1012
Usage
Semiconductor
Type
Plate Exposure
Page
Single Face
Automatic Grade
Automatic
Product Type
Molding Screen
Proximity Exposure
Vacuum Contact
Feature Size
Customized
Precision
High
Advantage
Energy Saving
Operation
Easy
Life Time
Long
Transport Package
Wooden
Specification
380V 50Hz; 6-12kw
Trademark
yincai
Origin
China
HS Code
8442302900
Production Capacity
500/Month
Packaging & Delivery
Package Size
140.00cm * 120.00cm * 115.00cm
Package Gross Weight
160.000kg
Product Description
Product Description Machine Application:Making plate for printing scutcheon, outdoor advertising, renew & publish printing.
Making plate for printing circuit board (PCB), solder mask (S/M), and character printing.
Characteristic Working environment:
1. The workshop should keep in 18~29 Degree Celsius, relative humidity 40%~60% and well-ventilated for take good care the forme and chemical.
2. Avoid direct sunlight, if there have windows in workshop, close off by curtain with light-proof.
3. If there have daylight lamp in workshop, should cover it by uv-resistable housing.
Product Parameters
| Model | YCME1012 | YCME1215 |
| Max screens size | 900×1100mm | 1100×1400mm |
| Max exposure area | 1000×1200mm | 1200×1500mm |
| Standard illuminant | 2000W/3000W cool air uv lamp | |
| Vacuum air pump | 220V 1/5HP oil-less pump | |
| Power supply 1 | Single phase 220V /35A/50HZ | |
| Power supply 2 | Three phase 380V /35A/50HZ | |
| Machine size | 1000×1200×950mm | 1200×1500×1200mm |
| N/W | 140KG | 160KG |
