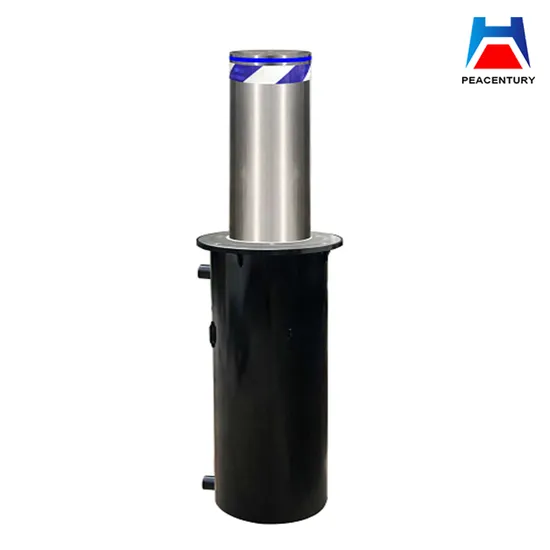

High Fashion Waterproof Stainless Steel Retractable Bollards Hydraulic Rising Bollard

Product Description

High fashion water proof stainless steel retractable bollards hydraulic rising automatic bollard Hydraulic Bollard
Product Description

1	Power	AC220C/380V
2	Operating Temperature	-10°C~65°C Waterproof, Dustproof
3	System Power	1.5KW/2.2KW/3.7KW/5.5kw(heavy-duty)
4	Up&down time	3~6 seconds(can be adjustable)
5	Parts of Blockers	1,Blocker Body 2,Automatical Control Board 3,Hydraulic Pressure Integration
6	Dia.of blockers	168mm ±2mm 220mm ±2mm 275mm ±2mm
7	Communication Distance	≤1200M
8	Thickness size	10mm ±1mm Optional
9	Communication Connection	RS485 interface
10	Material	A3 steel, spray anti-rust paint;
11	Colour	Various color optional
12	Applications	Highway Charging,Airport,Gov. Poblic Area,Banks,Ports&Embassy

PEACENTURY SPECIFICATION
1) Control system : Electrical Hydraulic system
2) Load-bearing: Max. 80 tons container truck
3) Power supply: 220V(Control voltage 24V)
4) PLC controller: Americal Original Chip
5) Rising speed : 3.5S 6) Dropping speed: 3S
7) Remote control distance: 30m
8) Control box distance: ≤100m
9) Working temperature: -25ºC~75ºC
10) Storage temperature: -10ºC~65ºC
11) Material: 304 stainless steel Tube
12) Diameter: 219mm(options for 273/880mm)
13) Thickness: 6mm(options for 8/10mm)
14) Standard rising height: 600mm
15) Device height: 1130m, LED light added
16) Water-proof,damp-proof and dust-proof 17) 1 year warranty, plus Life time maintainance.
Automatic hydraulic tilting and lifting roadblocks; Road Blocker machine Ribbon maojian Road Blocker machine without maojian main road Blocker machine two hydraulic Road Blocker machine belongs to the control of road traffic equipment, matching with the Barrier Gate control system used, or used separately.
Workshop show
Packages
What is the feature of your automatic hydraulic rising bollard?
1.Durable,Overload,Operate Smoothly,Low Noise,Fast speed up&down
2.Micro control technology makes bollards work stable and reliable,Easy integrate to other systems
3.Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
4.Advanced mature Hydraulic pressure technologies
5.Remote control system realize wireless control up&down within 30 meters range
6.Customized for different users requests
7.Controller display : LCD and LED
8.Swiping card system: built-in card reader to control bollards up&down
9.Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card
10.Connected with Computer Management OR Charging System
