Fully Automatic Vertical Silk Screen Printing Machine

Fully Automatic Vertical Silk Screen Printing Machine

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
TAM-Z2
Structure
Flat-bed cylinder press
Color & Page
Single-Colour Printing Press
Application
Packaging Printing
Print Interface
USB2.0
System Supported
Windowsxp32
Certificate
Ce
Warranty
Screen Printer 18 Months, LED UV Machine 24months
Condition
New
Usage
Membrane Switch, Sheet Metal, Plastic, EL Pannels
Delivery Detail
Within 30 Days After Order Confirmation
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Power
380V 3phase or Single-Phase 220V
Printing Area
300*450mm
Table Size
400*450mm
Consumable
Squeegee, Aluminium Screen Frame, Silk Screen Me
Transport Package
Plywood Case/Wooden Case/as Required
Specification
1330mmX1000mmX1750mm
Trademark
Tamprinter
Origin
China(Mainland)
HS Code
8443198000
Production Capacity
30sets/Month

Product Description

TAM-Z2 Fully Automatic Vertical silk Screen Printing machine
Video link click here:
https://youtu.be/VIo4ylngVFU
Technical parameters:
Item Description
TM-3045Z Vertical screen printer with
robot arm
 Worktable area: 400X450mm
Max printing area: 300X450mm
Max screen fame size : 550X720mm
Substrate thickness (mm):less than 40mm
Printing speed (pcs/h):900
Working pressure(Mpa):4.0-6.0
Machine size(mm): 980X820X1580mm
2CBM
weight:280kg
Rated voltage(P/V/Hz) 3/380/50
Source power: 380V/1.5kw
Free fitting
clamp 300mm--1pcs,tinge 320mm---1pcs;
clamp 450--1pcs,tinge 470mm--1pcs.
Tool box
TM-UV400-L varnish Machine
 Conveyorbelt width(mm) 380
Effective range (mm) 400
Max thickness of cured (mm) 40
Conveyor speed (m) 2~20
Power(P/V/Hz) 3/380/50
UV lamp(KW/2pcs)5.6
Driving power(W) 60
Total power(KW) 13
Dimension(L*W*H) 4200*700*1200
5.2CBM
Weight(kg) 350
Free fitting
- 1 X speed regulator

Performance & Features

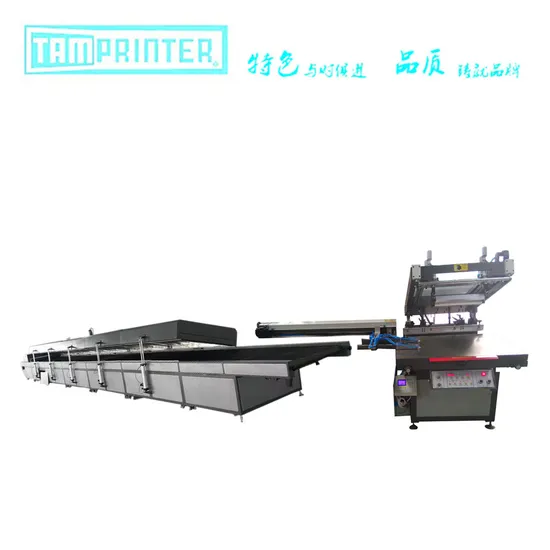

1. This line is composed of vertical screen printer, UV dryer and collecting device.
2. It is a fully automatic production line which takes off material automatically.
3. After printing finished, robot arm will suck and pull out the printing material, then send it to next working procedure (drying and products collecting).
4. It can not only save human labor, but also improve working efficiency of printing machines.
5. It applies to printing on membrane switch, sheet metal, plastic, plastic film etc.
Pls contact us for more information!
Please Feel free to email with us or call us directly (Phone +86 1599 4744 161)
We will reply you ASAP.
