Angle Drilling Machine Tower Structure Fabrication Angle CNC Marking , Shearing and Punching Machine

Product Description

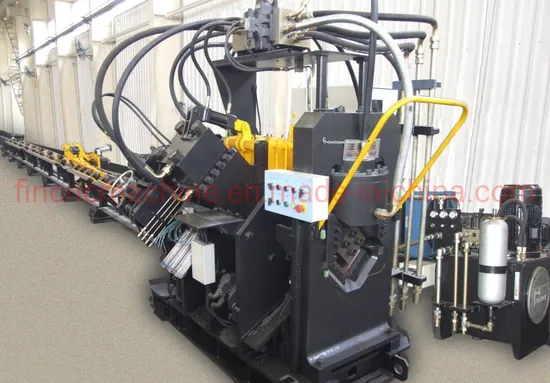

APM0908 Tower Structure Fabrication Angle CNC Marking , Shearing and Punching Machine 40mm*40mm*3mm-90mm*90mm*8mm
The machine is the automatic special equipment used for angle steel marking, punching, and shearing mainly in the field of angle steel tower industry.


Technical specification of APM0908

Model	APM0908
Angle Size (mm)	40x40x3~90x90x8(Q345)
Max. workpiece length (m)	12
Max. punching capacity(DxT mm)	Φ25.5mm x8mm
Nominal punching force (kN)	350
Nominal marking force (kN)	1030
Nominal cutting force (kN)	1000
No. of character group (piece)	4
No. of character in each character group (piece)	18
Character size (mm)	14x10x19
Range of stadia (mm)	20~170 (stepless)
No. of punch on each side (piece)	3
Max. feeding speed (m/min)	40
No. of CNC axes (piece)	3
Overall size (m)	25x7x2.2
Total power (kW)	31.4
Machine weight (kg)	Approx. 15000

Angle feeding Speed: 40m/min, the effiency is about 1000 holes/hour
The finished angle conveyor is rotated to one side by pneumatic power. The max. Length of finished angle is 8 m.
There are four transverse conveyors which can infeed automatically.
Type of programming: Keyboard input, USB interface input, floppy disc input.
Working environment:
Working temperature: 0~ 40 degree
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ± 10%
Frequency: 50 Hz
Main outsourcing components list of APM0908:

No	Name	Brand	Manufacture
1	AC servo motor	Delta	Taiwan China
2	PLC	Delta	Taiwan China
3	Electromagnetic valve	Atos/Yuken	Italy/Tawan
4	Relief valve	Atos/Yuken	Italy/Tawan
5	Double vane pump	Albert	USA
6	Air valve	SMC/Airtac	Japan/Taiwan China
7	cylinder	SMC	Japan

Machine feature:
1.There are two sets of punching units on each side which can install three kinds of drills with different siameters.three set of puching die-station can move altogether controled by CNC to change the punching stadia.

2.single-blade cuuting ensures smooth and saves material.


3.Marking unit adopt close frame with stronger rigitity. Marking stadia can be set at will .
4.CNC feeding trolly is drive by AC servo motor .The photoelectric encorder feeds back information.Closed loop controlto ensure high positioning precision.
5.Hydraulic system mainly is use to compele punching cutting marking press material and replace the character boxes.


6.The control system consists of a host computer ,CNC system,servo motor,PLC and detection switch etc. .Only to input the drawing workpeice, the processing program is automatically generated.It has a set temperature detection system for hydralic station,The cooling or heating mode can be decided according to the oil temperature.
