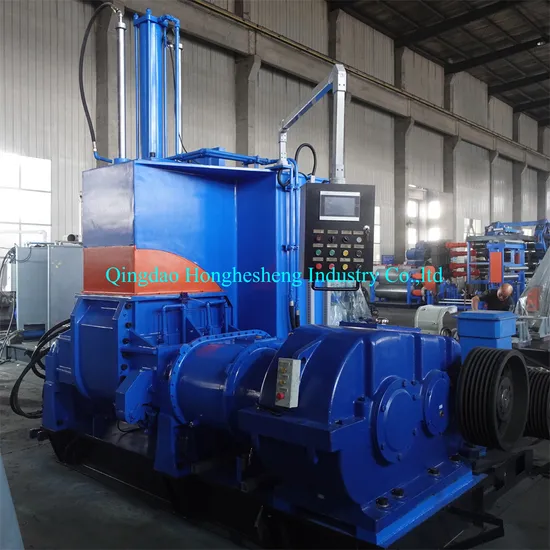

110L Totally Enclosed Mixing Mill Rubber Kneader Machine Pressurized Kneader

Product Description

Full automatic rubber dispersion kneader machine for natural rubber EPDM EVA silicone rubber mixing is designed with latest technology drawings and the core components are imported from abroad.

This machine has characters as follows: environmental-friendly, high-efficiency and high safety, with human-orientated design and easy to reload and clean, it has been recognized by factory lab, universities and R&D institutions for recipe researching and small-scale production. It can also be used in electric wire, cable, electronics, sole, sports equipment and auto parts industries for rubber, plastic and chemical production mixing and plasticizing.
Full automatic rubber dispersion kneader machine for natural rubber EPDM EVA silicone rubber mixing is applicable to rubber, plastic and chemical industry. And most suitable kneading application: EVA., rubber, TPR, sole, rubber roller, hoses, belts, sponges, vibration insulator, elastic cord, sealing materials, tire, tapes, master batches, pigment, ink, electric rubber parts, chemical industry compounds.

Parameter/model	X(S)N-3	X(S)N-10	X(S)N-20	X(S)N-35	X(S)N-55	X(S)N-75	X(S)N-110	X(S)N-150	X(S)N-200
Total volume (L)	8	25	45	80	125	175	250	325	440
Working volume (L)	3	10	20	35	55	75	110	150	200
Driving motor power (KW)	7.5	18.5	37	55	75	110	185	220	280
Tilting motor power (KW)	0.55	1.5	1.5	2.2	2.2	4	7.5	15	7.5
Tilting angle	140	140	140	140	140	140	140	140	140
Rotor speed (RPM)	32/25	32/25	32/26.5	32/24.5	32/26	32/26	30/24.5	30/24.5	30/24.5
Pressure of compressed air (MPA)	0.7-0.9	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Capacity of compressed air (m³/min)	≥0.3	≥0. 5	≥0.7	≥0.9	≥1.0	≥1.3	≥1.6	≥2.0	≥2.0
Pressure of cooling water (Mpa)	0.2-0.4	0.2-0.4	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
weight (kg)	1038	3000	4437	6500	7850	10230	14200	19500	22500

different parameter machine type
