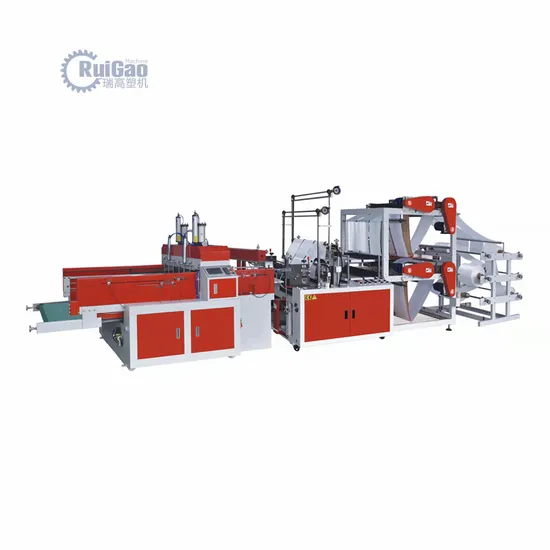

6 Line Biodegradable Bag Cutting and Sealing Machine

Product Description

HDPE Plastic Bag Making Machine
Machine Characteristics:
This machine is applied to manufacturing and printing the uncolored vest bags made of HDPE, LDPE roll film.It is suitable to do the T-shirt Bag and Flat Bag,which can be used as big garbage bag.The main motor adopts Taiwan frequency conversion motor to save more electricity and regulate speed more freely. The unwinder is Taiwan design, Same speed as main machine.And All electric parts is Famous brand.Longer life also. It is fully automatically, save worker and protect environment.
Main Technical Variables:

Model	RG-DL1000B	RG-DL1200B
width of sealing &cutting(mm)	950*2, 300*6	1150*2 350*6
Length of sealing and cutting(mm)	1200	1200
Speed of bag-making(pc/min)	240-720	240-720
Power of motor(kw)	1.5kw	1.5kw
Weight(kg)	2500kg	2800kg
Outline Dimension(m)	5.5×1.5×1.7	5.5*1.7*1.7
Feeding	servo motor	servo motor

Machine DetailsMachine Details:
unwinder with 370w AC motor, Delta inverter control
High quality Sensor to control the unwinding film rolls feeding
Air cooling system:
1.Controlled by Taiwan Brand electric valave, Airtag brand
2.Air cooling can make the sealing line more stronger and no stretch.
Machine Eletric details:
1. Fotek Relay from Taiwan
2.Omron temperature controller
3.Panasonic Photocell
Sealing Knife:
It with high Class Copper materials and hot treatment, so no change when it is heating.Machine details:
Cutting parts, with alloy steel materials, Longer life
We also have other products, if you interest, Please click
FILM BLOWING MACHINE
PLASTIC BAG MACHINE
RECYCLING MACHINE
PRINTING MACHINE
1,Q: Your factory is trading company or factory?
A: We are factory. We have more 2100 square meter workshop and 23 workers containing the 2 installment engineer and 1 electric engineer.
We are Factory, so we have cost advantage than others
2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.
3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight.
Delivery time is 20 to 30 days. It is according to order quantity.
4,Q: What is your company after sale service?
A: Our installment engineers are available. Normally it will take about 7 to 10 days for all.
Our guarantee is one year. If there is any spare parts is broken, we can send them freely to you.
You are welcome to contact with us, we will provide excellent quotation and high quality machine
