Aluminum Pontoon Type Internal Floating Roof for Storage Tank

Product Description

Product Description

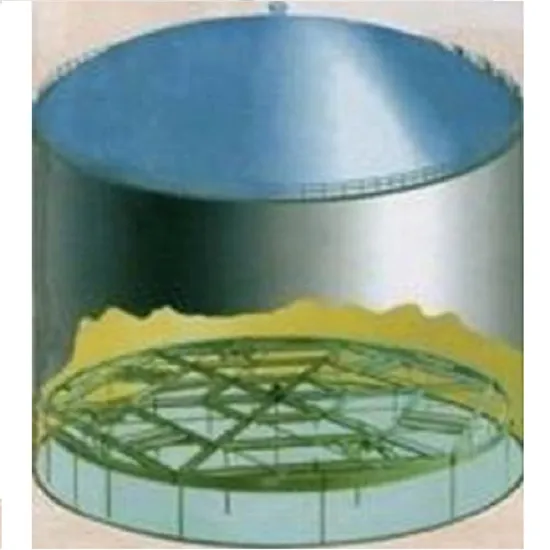

Internal Floating Roof
Internal Floating Roof (IFR) is tailor made to fit the corresponding tank in compliance with API 650 Appendix H standard, greatly meet the safe storage requirement of petroleum products, hazardous chemicals and liquids for the petroleum and petrochemical industry. Custom designed and completely pre-fabricated for each application, our pontoon type Internal Floating Roof (IFR) is the model for cost-effective, efficient and long-lasting Internal Floating Roofs.

The aluminum internal floating roof is designed as a radial hexagon. The pontoon and beam are hot extruded and combined into an integration component, without longitudinal welding seam, reducing the pontoon's leakage points, which is the leading technology in the current international pontoon type internal floating roofs.
Feature
* With special hexagon web structure, the frame of the IFR has good strength and stability. The structure itself can have a damping effect, can reduce and dissolve the shock wave quickly.
* Having many small sizes pontoons, which increase the operation feasibility.
The pontoons are separated from the frame, and evenly distributed, which can prevent the floating roof from inclining and getting stuck in case one or two pontoons are punctured. It increases the stability of the operation.
* Energy saving and consumption reduction of 98%.
The space of oil&gas in the floating roof is small, which can reduce the evaporation of product and reduce consumption
* High utilization ratio of storage tank.
The thickness of the internal floating roof structure is only 32 mm, thus increase the storage space and utilization rate of
storage tank.
* Safe, simple, quick installation, low maintenance cost.
The installation of floating roof is bolt connection or riveting, with no welding. It can also apply to remould tank. The spare
parts have good interchangeability and commonability, can be replaced separately. It is convenient in installation and
maintenance.
*High corrosion resistance and long service life
The main part of floating roof is made of good material with good anti-corrosion performance and long service life. The seal material have good electric conduction and abrasion resistant performance, good elasticity and not easy to crack.

Product Parameters

Product Name	Internal Floating Roof (IFR)
Tank Product	Chemicals, Oil and other products
Tank Diameter	3m ~60m
IFR Material	Aluminum or Stainless Steel
Seal Type	Single wiper seal, Single foam Seal, Double Seal
Seal Material	Nitrile rubber, EPDM, PTFE, fluororubber (Viton)

Detailed Photos

Packaging & Shipping

After Sales Service
LYGSVT provide On-site Service and After-sales Service for installation, commissioning, maintenance for all our products. The warranty period will be 12 months from date of startup or 18 months after delivery, whichever happens first.
