Product Description

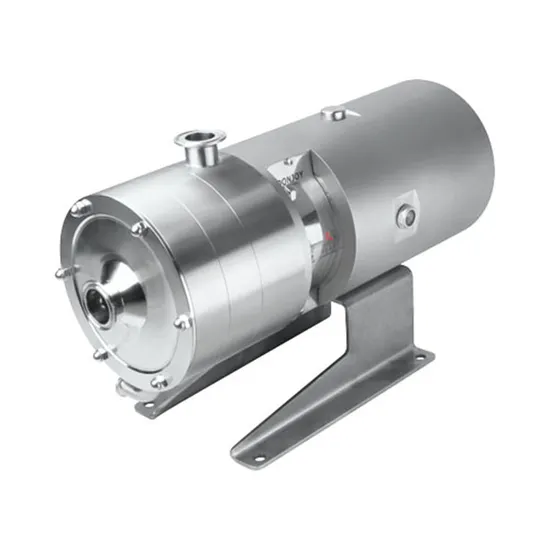

3A Sanitary Multi-Stage Emulsifying homogenizer pump for Dairy Processing Daily Chemicals Cheese Sauce

Item Name:	3A Sanitary Multi-Stage Emulsifying homogenizer pump for Dairy Processing Daily Chemicals Cheese Sauce
Material:	SS304 or 316L/1.4404,ASME BPE 316L
Seal Material:	EPDM (Standard, FDA approval), or FPM (Viton)
Max. Flow:	50 m3/h
Max. Power:	90KW
Media refinement:	≤ 100 GRIT (≈200 μm)
Temperature:	-20~140 degree centigrade
Surface treatment:	≤RA 0.8μm, ≤RA 0.6μm, ≤RA 0.4μm
Mechanical seal:	Single mechanical seal & double mechanical seal
Motor:	ABB/or others
Motor Frequency:	50HZ, 60HZ
Available connection:	Clamped, Threaded, Flanged, Aseptic flanged
Available standard:	DIN, SMS, 3A, RJT, ISO, IDF
Operated:	By electic motor
Low discharge :	Diaphragm valve/ball valve/butterfly valve
Certification:	3-A-02-11(N.O.1579); MD/06/42-EC(N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004;
Application range:	Food, beverage, pharmacy, health protection, fine chemistry, coating, pesticide, daily chemical and papermaking etc.
Packaging Details:	By plywood case

3A Sanitary Multi-Stage Emulsifying homogenizer pump for Dairy Processing Daily Chemicals Cheese Sauce
Solutions for high-efficiency,dispersion,cut refinement,smash,emulsification,mixing,homogenization,high purity
Features:
1, Large capacity, suitable for industrial on-line continuous production;
2, Particle size distribution range narrow, high uniformity;
3, Saving energy, time and efficiency;
4, Low noise, smooth operation;
5, Eliminate the production quality discrepancy between batches;
6, No dead ends, material 100% through the dispersing and shearing;
7, With short distance, low head delivery function;
8, Easy to use, easy maintenance;
9, Can achieve automation control;
10, Significantly shorten the process time, to achieve the complete dispersed effect;
11, Complete elimination of fish-eye, clot;
12, Easy to clean online - CIP.
