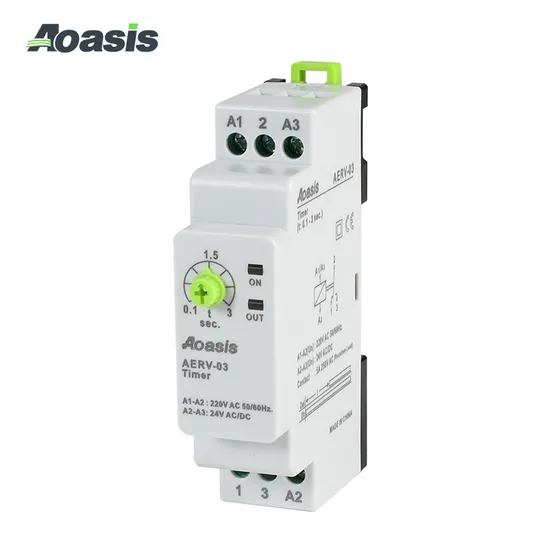

Aoasis Aerv-03 Timer Delay Relay 220V Timer 0.1s to 100 Hours Single Function Time Relay

Product Description

Product Description
AERV series time relays are widely used in industrial,residential,commercial and other fields,requiring time-related control.
Production Selection Guide:

Explanation	Type	Time Range	On Delay	220V AC	24V AC/DC	DIN-Rail	Pcs.Box
Time Relays	AERV-03	0,1-3.sec	√	√	√	√	20
	AERV-06	0,1-6.sec	√	√	√	√	20
	AERV-12	0,1-12.sec	√	√	√	√	20
	AERV-30	0,1-30.sec	√	√	√	√	20
	AERV-60	0,1-60.sec	√	√	√	√	20
	AERV-03D	0,1-3.min	√	√	√	√	20
	AERV-06D	0,1-6.min	√	√	√	√	20
	AERV-12D	0,1-12.min	√	√	√	√	20
	AERV-30D	0,1-30.min	√	√	√	√	20
	AERV-60D	0,1-60.min	√	√	√	√	20
	AERV-08	0,1-100.hour	√	√	√	√	20
Star-Delay Timer	AERV-YU	0.1-30 sec.(Y) 10-500ms(Y→△)	√	√	√	√	20

Technical Parameters:

Type	AERV-03 AERV-03D	AERV-06 AERV-06D	AERV-12 AERV-12D	AERV-30 AERV-30D	AERV-60 AERV-60D	AERV-08	AERV-YU
Dimensions	23mm
Protection Class	IP20
Weight	65g/Pcs						75g/Pcs
Operating Voltage	220VAC/24VDC
Operating Range	150-260VAC, 24VDC±10% (Other customizable)
Power Consumption	<4VA
Output Contact	5A/250V AC (Resistive Load)
Ambient Conditons/Humidity	-20ºC.....+55ºC;85%
Mounting	DIN-Rail Mounting/Screw Terminals

External Dimensions(mm):
