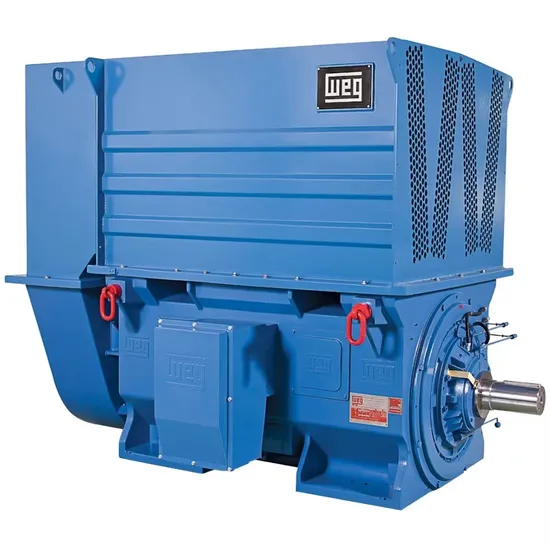

500kw 750kw 1000kw 1500kw 2000kw 2500kw Weg ABB Teco Siemens Motors

Product Description

weg brand 7920kw 500kw 750kw 1000kw 1500kw 2000kw 2500kw Weg ABB Teco Siemens motors

Rated current : 888.2 A	Rotor voltage : Not applicable	Rotor current : Not applicable
R. Amperes : Not applicable	L. R. Amperes : Not applicable	L. R. Amperes : Not applicable
No load current : 257.6 A	Rated speed : 995 rpm	Slip : 0.50 %
Rated torque : 75714 Nm	Locked rotor torque : Not applicable	Breakdown torque : 240 %
Insulation class : F	Service factor : 1.15	power 7920kw

Rated current : 888.2 A
Rotor voltage : Not applicable
Rotor current : Not applicable
L. R. Amperes : Not applicable
LRC : Not applicable
No load current : 257.6 A
Rated speed : 995 rpm
Slip : 0.50 %
Rated torque : 75714 Nm
Locked rotor torque : Not applicable
Breakdown torque : 240 %
Insulation class : F
Service factor : 1.15
Moment of inertia (J) : 633.0 kgm²
Locked rotor time : Not applicable
Temperature rise³ : class B at SF 1.00
Temperature rise at SF : class F at SF 1.15
Duty cycle : S1
Inlet water temperature : 30 °C
Ambient temperature : -20 °C up to 40 °C
Altitude : 1000 m
Protection degree : IP55
Cooling method : IC86W
Mounting : B3L
Rotation¹ : Both
Noise level² : 80 dB(A)
Vibration : A 2.3 mm/s rms
Starting method : Frequency inverter
Coupling : Direct
Output 50% 75% 100%
Efficiency (%) 96.90 97.30 97.50
Power factor 0.77 0.84 0.88
Load type :
Load torque :
Load inertia (J=GD²/4) :
Voltage Peak Phase-to-Ground ≤ 8200 V
Voltage Peak Phase-Phase ≤ 14100 V
dV/dt ≤ 4000 V
Notes
See notes on page 2
