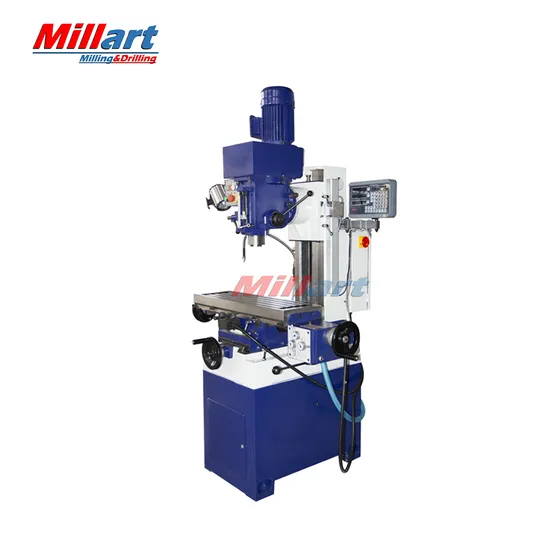

High Quality Bench Type Drill Mill Machine Zx50z Price
| US$1,800.00-2,100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX50Z
Type
Bench Milling Machine
Object
Hardware
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Max. Drilling Capacity
40
Spindle Speed Range
60-1500 Rpm
Table Size
800X240 mm
Number of Spindle Speeds
8
Transport Package
Wood Case
Specification
CE SGS ISO9001 ROHS
Trademark
L&T
Origin
Tengzhou China
HS Code
8459290000
Production Capacity
200 PCS/Month
Product Description
High Quality Bench Type Drill Mill Machine ZX50Z PriceFeature:
1. Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. Gear box spindle drive,with automatic feeding of spindle and micro feeding.
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Technical parameter:
| Model | ZX50Z |
| Maximal drilling capacity | 40 (ISO) |
| Maximal milling width | 80 mm |
| Maximal milling capacity | 25 mm |
| Number of spindle speeds | 8 |
| Spindle speed range | 60 - 1500 rpm |
| Spindle distance from column surface | 320 mm |
| Spindle distance from table | 30 - 350 mm |
| Spindle travel | 120 mm |
| Table travel | 360 x 210 mm |
| Table size | 800 x 240 mm |
| Motor | 1.5 kW |
| Dimensions | 1280 x 970 x 1650 mm |
Standard accessories:
| Drill chuck |
| Collet chuck kits |
| Work lamp |
| Coolant system |
| Some tools |
| Reduction Sleeve |
| Draw bar |
Optional accessories:
| X axis auto power feed |
| Worktable swivel |
| 2 axis DRO |
| 3 axis DRO |
| Machine Vice |
