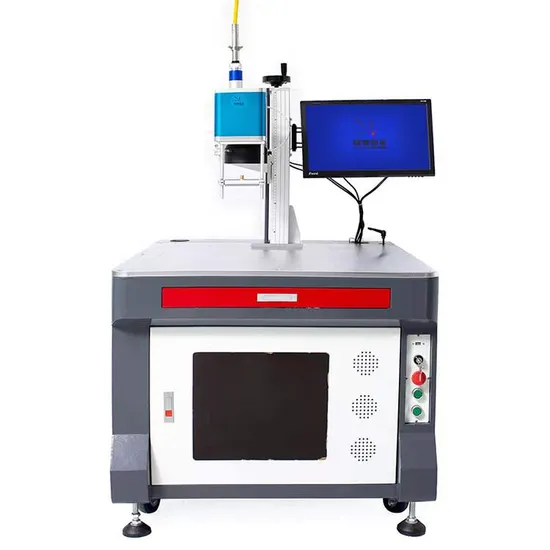

18650 Battery Cell Module Double Station Fiber Laser Welding Machine

Product Description

High precision lithium battery module laser welding machine has the gantry structure which can be welded in large format, and multiple sets of fixtures can be installed at the same time to weld various specifications and models of lithium battery modules. 1,Description:
High precision lithium battery module laser welding machine has the gantry structure which can be welded in large format, and multiple sets of fixtures can be installed at the same time to weld various specifications and models of lithium battery modules.
Laser welding spot is fine, high penetration, small taper, high precision; welding surface effect is smooth and no bubbles.
The laser welding process is pollution-free, the heat affected zone is small, and the deformation is small. The water cooling system is adopted to ensure the life of the laser device.
High-definition CCD monitoring screen and red light positioning indicator make the software editing process easy and convenient.
Stable performance of industrial PC, welding system software operation is simple and easy to learn.

2,High precision lithium battery module laser welding machine technical parameter

Item	Specifications
Model	HY-4000w
Laser source	4000w
XYZ Travel	Customizable
R Axis	Optional, 360° rotation
Position Accuracy	±0.02mm
Repeatability Accuracy	±0.01mm
Motion Source	Servo motor
Max Speed	500mm/s
Cooling Method	Water cooling
Electricity Demand	Customizable
Laser Wavelength	1080nm
Observation Syatem	CCD system
Gas Protection	Optional, Argon, Nitrogen
Environmental Requirements	No vibration, interference and ventilation
Welding Penetration	0.1~3.0mm
MOQ	1 set

3,Lithium Battery Machine Main parts:
High-precision galvanometer welding system can effectively ensure the accuracy of welding for high precision lithium battery module laser welding machine.
High precision lithium battery module laser welding machine has the gantry structure which can be welded in large format, and multiple sets of fixtures can be installed at the same time to weld various specifications and models of lithium battery modules.
High precision lithium battery module laser welding machine which has welding fixtures are customized according to customer drawings, with high precision.
High precision lithium battery module laser welding machine with CCD monitoring system, real-time monitoring, accurate positioning.
Dimensional drawing, the size of the worktable can be customized according to requirements
4,Application:

1. Welding of battery explosion-proof valve

High precision lithium battery module laser welding machine,The explosion-proof valve of the battery is a thin-walled valve body on the battery sealing plate. When the internal pressure of the battery exceeds the specified value, the valve body of the explosion-proof valve ruptures to prevent the battery from bursting. The safety valve has an ingenious structure, and this process requires extremely strict laser welding technology. Continuous laser welding can achieve high-speed and high-quality welding, and welding stability, welding efficiency and yield can be guaranteed.

2. Welding of battery tabs

High precision lithium battery module laser welding machine,The tabs are usually divided into three materials. The positive electrode of the battery uses aluminum material, and the negative electrode uses nickel material or copper nickel-plated material. In the manufacturing process of power batteries, one of the steps is to weld the battery tabs and poles together. In the production of the secondary battery, it needs to be welded with another aluminum safety valve. Welding must not only ensure the reliable connection between the tab and the pole, but also requires a smooth and beautiful weld.

3. Spot welding of battery poles

High precision lithium battery module laser welding machine,The materials used for the battery poles include pure aluminum tape, nickel tape, aluminum-nickel composite tape, and a small amount of copper tape. The welding of battery electrode strips generally uses pulse welding machines. Due to its good beam quality and small welding spot, QCW quasi-continuous lasers are suitable for high reflectivity aluminum strips, copper strips and narrow-band battery strips (polar strip width (Under 1.5mm) welding has unique advantages.

4. The power battery shell and the cover plate are sealed and welded

High precision lithium battery module laser welding machine,The shell materials of the power battery are aluminum alloy and stainless steel (stainless and acid-resistant steel). Among them, aluminum alloy is mostly used, generally 3003 aluminum alloy, and a few use pure aluminum. Stainless steel is a laser weldable material, especially 304 stainless steel, whether it is pulsed or continuous laser, it can obtain welds with good appearance and performance.

5. Power battery module and pack welding

High precision lithium battery module laser welding machine,The series and parallel connections between power batteries are generally completed by welding the connecting piece and the single battery. The positive and negative electrodes are made of different materials. Generally, there are two kinds of materials: copper and aluminum. Ultrasonic welding is usually used. Copper and copper, aluminum and aluminum are generally used. Using laser welding. Both copper and aluminum conduct heat very quickly and have a very high reflectivity to the laser. The relatively large thickness of the connecting piece requires a higher power laser welding.

5,Application Areas:

Lithium battery industry	3C Electronics Industry	Hardware industry
Aerospace industry	Automobile industry	Medical device industry
Energy, lighting, building materials industry	Jewelry industry	PCB industry
