New Macinte Smart Intelligent SMT Storage Rack for Reel Management

Product Description

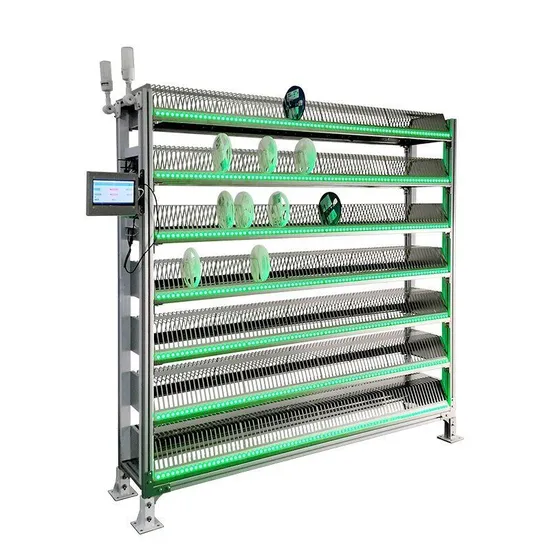

Macinte Intelligent Electronic Material Rack
The intelligent electronic material rack is a high volume ratio shelf used to store SMT chips. The material are placed in the corresponding positions according the LED indicator on the shelf , which is bound by the corresponding relationship of the QR code of the material number/location. Docking to the enterprise ERP/MES system ,automatically realizes the quickly operation of sending and receiving materials according to the light indication.
Application ValueStock in

1,Click /Scan order number to start Choose the stock in mode and click/scan the order /scan order code to start	2,scan reel code Scan the reel code and put it in any empty location , infrad	3,Stock in scan all reels in turn and click complete after all reels are stored

Stock out:

1,Enter the stock out mode and select the order Enter the stock out mode and select the order	2, Light on and off location lights to all reels in the order will be on , after take the reel and scan reel code its light wil off	3,Stock out Take other reels in turn . After all the reels are stock outed, click complete

Location Infrared sensing

RGB Light Control and Voice Prompt

1,Suitable for different environment Adiustable sensitivity, more accurate control 2,Efficiency High real-time, strong error detection ability, data damage can be retransmitted 3,Location mark and lock Real-time control, automatic marking and locking the location 4,Data processing Real-time sensor data and digital filter processing

1,Easy to maintian: Each LED module is independent and pluggable 2,Color management:Free to customize 128 colors (normal 7 colors) 3,Light programming: Steady on, dynamic fast blinking, slow blinking qradient color, etc 4,Brightness/volume adiustment: LED briahtness/sound can be adjusted 5,Top light /tower light:Quickly locate to the rack 6,Voice prompt:Supports text to speech, Intelligent voice playback

Product Description
Intelligent Electronic Rack Description
LED lights are installed on each shelf and each storage location. The use of light, light color, light flashing to complete the material shelf, material preparation, low warning, material overdue warning, material inventory and a series of operations. Improve the work efficiency of the warehouse management personnel, each step of the operation is controlled to prevent error, reduce the manufacturing cost of the enterprise, improve the management level of the enterprise.

Location Infrared Sensing Type Rack
name	IRS-20R	IRS-16R	IRSM-12R	IRSM-8R
applicable	16mm(for7'' reels)	16mm(for7'' reels)	16mm(for7'' reels)/35mm(for13'' reels)	16mm(for7'' reels)/35mm(for13'' reels)
surface number	double-sided	double-sided	3D+1S	3D+1S
layer number	7	7	4	4
plate number	1400pcs	1120pcs	360+30pcs	240+30pcs
Location sensor	yes	yes	yes	yes
Touch screen	Optional	Optional	Optional	Optional
Voice prompt	yes	yes	yes	yes
dimension	2230*390*1850mm	1800*390*1850mm	1380*390*1250mm	950*390*1250mm

Location Code Scan Type Rack
name	BCL-20R	BCL-16R	BCLM-12R	BCLM-8R
applicable	16mm(for7'' reels)	16mm(for7'' reels)	16mm(for7'' reels)/35mm(for13'' reels)	16mm(for7'' reels)/35mm(for13'' reels)
surface number	double-sided	double-sided	3D+1S	3D+1S
layer number	7	7	4	4
plate number	1400pcs	1120pcs	360+30pcs	240+30pcs
Location sensor	no	no	no	no
Touch screen	Optional	Optional	Optional	Optional
Voice prompt	yes	yes	yes	yes
dimension	2090*390*1850mm	1690*390*1850mm	1290*390*1250mm	890*390*1250mm

CAN bus controller
★ System support: Linux
★ Communication protocol: Support HTTP, TCP/IP
★ Specifications configuration: 4 cores, 2.4/5G wireless network card
★ Interface: Gigabit Ethernet, USB, HDMI, Bluetooth
★ Power supply: Micro USB or USB-C power interface Android wireless PDA
★ Pre-installed picking software: support WMS\MES, etc
★ Android system (support wifi, 4G network)
★ Support code reading photo, 5.98-inch touch screen
★ 4G memory +64G storage Company ProfileShenzhen Macinte has More than 20 Years of Weighing Industry Experience
We are the only enterprise to obtain the invention patent of
"weighing identification method and system" issued by the State Intellectual Property Office.
Service for a number of the world's top 500 enterprises, domestic listed companies, and widely praised, well known at home and
abroad.Shenzhen Macinte Intelligent Equipment Co., Ltd. was founded in 2002, which is a national high-tech enterprise, shenzhenhigh-tech enterprise, shenzhen double soft enterprise. Main products include automatic weight checking devices, weight testingmachine, weigher sorting machine, online weighing and culling machine, pick to light system, line shaft diverter system, DWSsystem, logistics conveying control system, etc. We have marketing centers, R&D centers and production bases in ShenZhen andChangSha.Our company has an expert team composed of a number of doctors, field application engineers, etc., long-term focus onalgorithm research, application development, industrial applications, has obtained a number of national invention patents. We aimat "professional casting quality, scientific and technological achievements future" ,and walking in the technical front.
