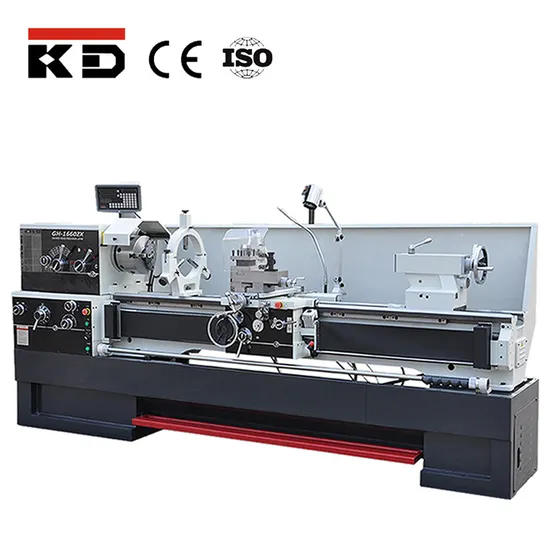

Conventional Gap Manual Lathe Machine X-1840zx
| US$3,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GH-1840ZX
Guide Rail
Hard Way
Tool Holder
4-Way Tool Station
Power Source
Manual
Controlling Mode
Manual
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Swing Over Bed
460mm
Max Turning Length
1000mm
Width of Bed
336mm
Spindle Bore
80mm
Speed
28-1800 Rpm
Transport Package
3000X1500X1800mm
Specification
2310x1050x1370mm
Trademark
kaida
Origin
Zhejiang
HS Code
8458190000
Production Capacity
1200 Sets/Year
Product Description
FEATURES AT A GLANCEPRODUCT SPECIFICATIONS
| MODELS | DC1440-E DC1460-E | DC1640-E DC1660-E | DC1840-E DC1860-E DC1880-E | DC2040-E DC2060-E DC2080-E |
| CAPACITY | | | | |
| Max. swing over bed | 360mm | 400mm | 460mm | 500mm |
| Max. swing over cross slide | 200mm | 250mm | 290mm | 330mm |
| Max. swing over gap | 600mm | 660mm | 700mm | 740mm |
| Distance between centers | 1000/1500mm | 1000/1500/2000mm | ||
| Max turning length | 850/1350mm | 850/1350/1850mm | ||
| Bed with | 336mm | |||
| HEADSTOCK | | | | |
| Spindle bore | 80mm | |||
| Spindle mount | D1-8 | |||
| Taper bore of spindle | MT-7 | |||
| Steps of spindle speed | 12 | |||
| Range of spindle speed | 42-1800rpm | 25-1800rpm | ||
| GEARBOX | | | | |
| Range of longitudinal feeds | 0.04-2.46mm | |||
| Range of cross feeds | 0.02-1.23mm | |||
| Number of inch threads | 61 | |||
| Range of inch threads | 1-5/8 - 72 T.P.I. | |||
| Number of metric threads | 24 | |||
| Range of metric threads | 0.5-20mm | |||
| Number of D.P threads | 45 | |||
| Range of D.P threads | 96-3 1/4D.P | |||
| Number of module threads | 20 | |||
| Range of module threads | 0.25-10M.Pmm | |||
| CARRIAGE | | | | |
| Max. tool size | 25x25mm | |||
| Max. compound slide travel | 130mm | |||
| Max. cross slide travel | 280mm | 310mm | ||
| TAILSTOCK | | | | |
| Tailstock sleeve travel | 130mm | |||
| Taper in tailstock sleeve | MT-5 | |||
| OTHERS | | | | |
| Main motor | 5.5kw (7.5HP) | |||
| Net weight | 2250/2550kg | 2300/2600kg | 2350/2650/2900kg | 2750/3000/3250kg |
| Overall dimension (LxWxH) | 2310/2810 x1050x1310mm | 2310/2810 x1050x1340mm | 2310/2810/3320 x1050x1370mm | 2310/2810/3320 x1050x1390mm |
