Sinotech Plastic Manufacturing Machine Mineral Water Bottle Cap 5 Gallon Making Injection Molding Moulding Pultrusion Machine 160 Ton

Product Description

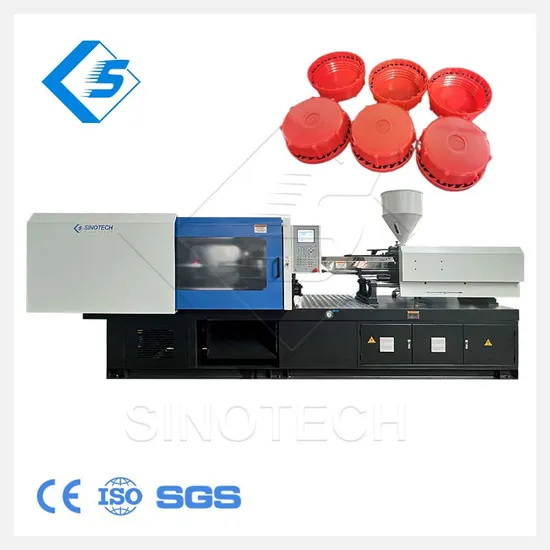

Sinotech Plastic Manufacturing Machine Mineral Water Bottle Cap 5 Gallon Making Injection Molding Moulding Machine
sinotech injection molding machine has a large diameter ratio, faster plasticization speed, short drying cycle, and ultra-high plasticizer capacity provide guarantee for the high efficiency of the whole machine.
Product Description
SINO-TECH ST-480A high speed thin wall container injection molding machine is a specially designed machine model which is mainly for plastic bottle cover products . It is with short cycle time to 5.6 seconds. ST-480A with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Main feature1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3.Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 70 to 1600Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Parameters

Item		160SElll
		1600-629
Screw diameter	mm	40
Theoretical shot volume	cc	283
Shot weight (PS)	g	257
Shot weight (PS)	oz	9.1
Length/Diameter ratio	L/D	22.5
Injection pressure	MPa	223
Injection rate	cm³/sec	147
Injection stroke	mm	225
Max. Screw speed	rpm	274
Plasticizing capacity (PS)	g/s	23.2
Injection unit force	Ton	5.7
Carriage stroke	mm	320
Clamping force	Ton	160
Max. daylight	mm	1000
Clamping stroke	mm	480
Distance btwn. Tie bars	mm	470*470
Min mould dimension	mm	320*320
Mould thickness range	mm	150-520
Ejector force	Ton	7.7
Ejector stroke	mm	150
No. of ejector pins	unit	5
Max. motor power	kW	16.4
System pressure	MPa	17.5
Hydraulic pump capacity	L/min	112.5
No. of heater zones	unit	4+1+1
Heater input power	kW	11.48
Ultimate capacity	kw	28.88
Current	A	39.5
Net weight	Ton	5.68
Oil filling capacity	L	320

Detailed Photos

Application


Company Profile

Certifications

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
