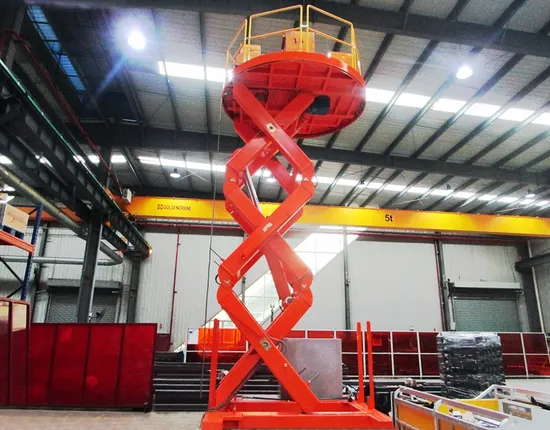

10 Ton Hydraulic High Lift Table with Turntable
| US$48,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Carrying Capacity
10000kg
Moves
Stationary
Driven Type
Hydraulic
Running Mode
Stationary
Certification
GS, CE, ISO 9001
Lifting Height
4700mm
Lifting Time
120s
Transport Package
Wooden Pallet and Steel Pallet, Wooden Case
Specification
3200mm
Trademark
Marco
Origin
China
HS Code
84289090
Production Capacity
1000
Product Description
Product DescriptionHigh lift table is designed with multiple set of vertically mounted scissors to achieve higher stroke with shorter platform length. Usually installed in space is limited, lifting height is higher.
Most high lift table are used for Goods Elevator, Pallet tracker, disable elevator. Considering the safety and stability on structure, Marco high lift table has Max. 4 layers as 4H on model description.
Product Parameters
| Model No. | M6.5-100470-D23H | Capacity | 10000kg |
| Platform size | 3200mm | Base Frame | 3002x2982mm |
| Min. Height | 2250mm | Lifting Height | 4700mm |
| Model Type | stationary | Lift Time | 120s |
| Color | Grey/green/ blue/others | Product name | refer to product |
| Specifications | Customizable | Application | material handling |
| Power Voltage | 380V 50Hz | Control Voltage | 24V DC |
| Delivery Time | 1 month | Package | exported case |
| Trademark | Marco | HS Code | 84289090 |
| Orgin | Made In China | Production Capacity | 100/month |
| Certificate | ISO9001, CE, ISO3834, | Design standard | EN1570-1-2011 |
