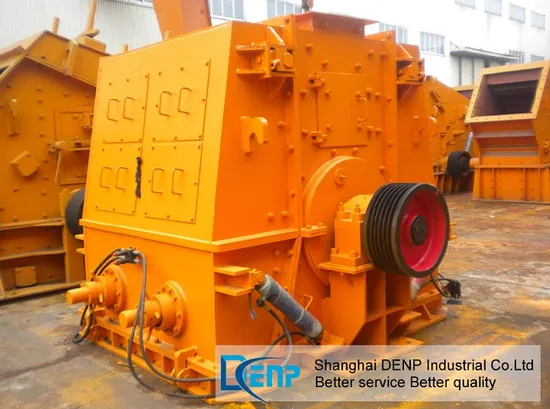

High Performance of Impact Crusher

High Performance of Impact Crusher

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
PF-1010
Crushing Degree
Intermediate Crusher
Crushing Style
Impact
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Adjustable Tongs
Object
Limestone/Shale
Principle
Impact Crusher
Cutter Material
High Chrome
Transport Package
Wooden Pallet
Specification
350Mpa
Trademark
DENP
Origin
China
HS Code
8474209000
Production Capacity
5000ton/Month

Product Description

Usage and Application
The JOYAL Impact Crusher is used for primary,secondary and fine crushing of all kinds of stones and rocks with compressive strength less than 350 MPa such as granite,marble,and limestone,The Impact Crusher is widely used for sand and rock production in the industry of roads,railways,reservoir,electricity power,building materials and so on.
Working Principle
The materials are crushed via impact energy produced in the impact crusher.When the materials enter the zone of the board hammer,they are flung into the impact equipments via the high-speed impact of the board hammer.These materials will be re-crushed after rebounding into the scale board.The large materials are crushed into small pieces until it becomes the specified granularities,The end products come out from the base of the impact crusher.
Main specifications
Model Feeding Hole Dimension(mm) Maximum Feeding size (mm) Rotor Dimension(mm*mm) Handling Ability (t/h) Power(kw) Overall Dimension (mm*mm*mm) Weight(t)
PF1007 400*730 250 Φ1000*700 30~50 37-55 2440*1580*26720 9.8
PF1010 400*1080 250 Φ1035*1050 50~80 55/90 2280*1804*2389 12.8
PF1210 400*1080 350 Φ1250*1050 70~120 110 3165*2027*2729 14.6
PF1214 400*1430 350 Φ1250*1400 95~145 132/160 2571*2403*2705 17
PF1315 860*1520 350 Φ1320*1500 150~200 220 3154*2695*2613 21.5
PF1320 860*2030 500 Φ1320*1200 200~280 315 3320*3218*2613 25
PF1416 1052*1652 500 Φ1420*1600 280~350 355 3405*2813*2713 29
PF1520 2040*1315 700 Φ1512*2000 350~450 400/450 4138*3422*3649 44
PF1620 2040*1315 700 Φ1612*2000 400~600 500 4236*3572*3735 47
PF1820 1620*2040 700 Φ1800*2000 550~800 630/710 4471*3250*4008 66
PF2024 1800*2430 1200 Φ2000*2400 800~1100 1120 4800*4740*4180 115
PF2325 2210*2540 1500 Φ2300*2500 1000~1400 1250/1400 5360*5075*4679 158
