Stainless Steel Super Micro Mill 200 -400 Mesh Fine Powder for Starch, Icing Sugar, Spice, Salt, Chemical, Medicine, Herb, Cereal, Resin, Herbicide
| US$6,757.00-29,089.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WFJ-15
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, ISO 9001
Condition
New
Name
Super Fine Grinder
Other Name
Stainless Steel Grinder
Dust Collection
Bag Filter
Mesh Size
20-450mesh
Separator
Cyclone
Application
for Grinding Sugar, Grain, Rice, Cereal
Transport Package
Wooden Case
Specification
CE, SGS, ISO, GMP
Trademark
CK
Origin
Changzhou
HS Code
8479820090
Production Capacity
500set/ Year
Product Description

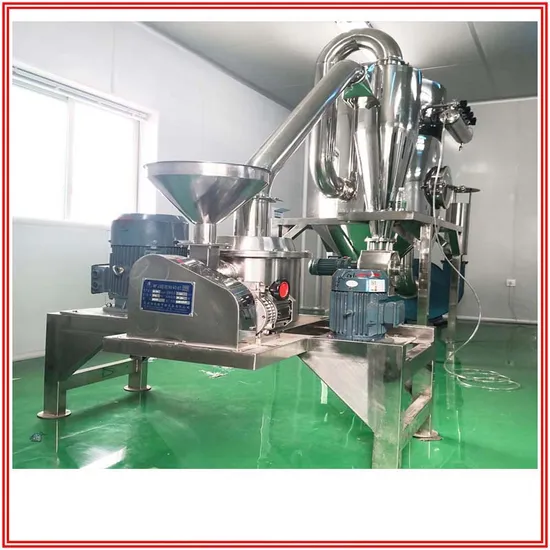

Descriptions The equipment consists of main machine, assistant machine, dust bag filter and control cabinet.The process of produce is continuous.Application: The machine is extensively used in pharmaceutical, chemical, food industries for pulverizing dry brittle materials. Such as cereal, sugar, salt, spice, herb, etc
Control cabinet:
Discharge powder: size available 120-450mesh
Technical Parameter
| Spec | unit | WFJ15 | WFJ-18 | WFJ-32 |
| production capacity | kg/h | 10-200 | 20-450 | 60-800 |
| inlet material diamenter | mm | <10 | <10 | <15 |
| oulet material diamenter | mesh | 80-320 | 80-450 | 80-450 |
| power | kw | 13.5 | 17.5 | 46 |
| main rotaing speed | r/min | 3800-6000 | 3800-6000 | 3800-4000 |
| overall dimension(L×W×H) | mm | 4200×1200×2700 | 4700×1200×2900 | 9000×1500×3800 |
| weight | kg | 850 | 980 | 1500 |
