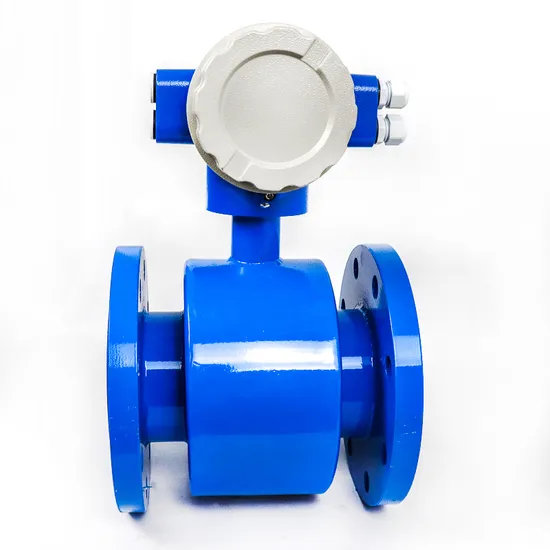

Digital RS485 Dirty Water Electromagnetic Flow Meter for Domestic Sewage

Product Description

Digital RS485 Dirty Water Electromagnetic Flow Meter for Domestic Sewage

The Siko Instruments HG-EMFM Magnetic Flow Meter Only Have Two Non-Moving Parts That Contact The Measured Fluid Media- A Liner Which Protect The Flow Body From The Fluid And A Pair Of Electrodes Which Detect The Velocity Of The Flowing Fluid.
This Flow Measurement Design Insuring It Can Be Fabricated To Be Compatible With Virtually Any Conductive Liquids Regardless Density, Viscosity, Chemical Composition Or Fluid Condition/Particulate Count, And With Features Of Long Service Life, Less Maintenance, Low Pressure Drop, Minimally Invasive. It Widely Used In Many Industries And Application Including Wasterwater / Municipal, Food / Beverage, Pulp/Paper...etc.
HG-EMFM Series Intelligent Electromagnetic Flowmeter, Suitable For Measuring The Volume Flow Of Conducting Liquid And Slurry In Pipeline, Such As Water, Sewage, Slurry, Pulp, All Kinds Of Acid, Alkali, Salt, Food Slurry etc., Applicable To The Petroleum, Chemical, Electric Power, Metallurgy, Water Supply And Drainage, Light Industry, Food Industry ...etc..
HG-EMFM Series Intelligent Electromagnetic Flowmeter Using The Latest Technology In The World. Using Constant Current Of Three Value Low-Frequency Square Wave Or Dual Frequency Rectangular Wave Excitation, Has Both Advantages Of Rectangular Wave Magnetic Field, It Overcomes The Shortcomings Of The Sine Wave Magnetic Field; It Can Eliminate The Power Supply Voltage Fluctuation, Error Variation Of Power Frequency And Excitation Coil Impedance Changes Caused By; Zero Stability Andgood And Is Not Affected By The Fluid Noise Interference. The Product Has High Reliability, The Characteristics Of High Stability.
In Addition, In This Product The Excitation Coil Designed With Non Uniform Magnetic Field Distribution, The Sensor Made Of Small Size And Light Weight, The Error Can Be Caused By The Asymmetrical Play A Certain Compensation.
Application:
01. Water & Seawater
02. Food & Beverage
03. Chemical & Medicine
04. Factory Automation
05. Wastewater & municipal
06. Pulp & Paper ......

Place OF Origin	Hefei City Anhui Province China
Warranty	1 Years
Customized Support	OEM, ODM
Brand Name	Siko Instruments
Model Number	HG-EMFM Electromagnetic Flow Meter
Keywords	Domestic Sewage Flow Meter
Medium	Conductive Liquids Conductivity ≥ 5 µS/cm
Power Supply	DC 16-36V AC 110-240V
Analog Output	4-20mA / Pulse / Open Collector Switches / 5 Amp Relay Contacts
Communication	HART / RS485/Modbus / Profibus-DP
Liner Material	Rubber, PTFE (F4), FEP (F46), PFA
Electrode Material	Stainless Steel 316L, Hastelloy (HB and HC), Ti, Ta, Pt
Protection Grade	IP65 Integrated Configuration IP68 Remote Type Only
Ambient Temperature	(-5 - +130) °F (-20 - 55 °C)
Process Pressure	42Mpa (Max)
Process Temperature	14-140 °F (-10~60 °C) - Polyurethane Lining -5-160 °F (-20~71 °C) - Neoprene Lining -40-356 °F (-40~180 °C) - PFA Lining -40-356 °F (-40~180 °C) - PTFE Lining
Accuracy Class	0.5%F.S.
Size	3/8"-80" (DN15-DN2000)
Measuring Range	0.32 ft/s (0.1m/s) Min. 39 ft/s (12 m/s) Max
Measuring Tube Material	Stainless Steel #304
Flange Material	Carbon Steel (Standard) Stainless Steel 304 (Optional) Stainless Steel 316 (Optional)
Coil Housing	Carbon Steel (standard) Stainless Steel #304 (Optional) Stainless steel #316 (optional)
Process Connection	Flanged Connection DIN PN10 / PN16 / PN25 / PN40 ANSI 150# ANSI 300# / ANSI 600# JIS 10K / JIS 20K / JIS 40K

Features

01.	Applicable Sizes In 1/8"-80″ (DN3-DN2000).
02.	Wide Fluid Velocity Range of 0-50 Feet / Sec (0-15 m/s ) With Excellent Low-Flow Accuracy.
03.	4-20mA, 0-5Khz Pulse And 2A Relay Outputs Available.
04.	Hart, RS485/Modbus Profibus-Dp Communications Available.
05.	IP 68 Protection Class For Underground Submersible Application.
06.	Easy-To-Read Oled Display; Visible In Low Light Environments And In Direct Sunlight.
07.	Conductivity Of Measured Medium: ≥ 5 ms/cm
08.	Excellent Accuracy ±0.5% of Reading
09.	Various Liner / Electrode Material Combinations Make Meter Chemically Compatibility With Different Fluids.
10.	Empty Pipe Detection And Electrodes Resistance Measurement Diagnosing Empty Pipe And Electrodes Contamination Accurately.

Product Parameters
Measuring Range & Pressure
Outline Dimension
Selection Table

Calibration & Factory
