355nm UV Laser Coder for High-Resolution Data Matrix

Product Description

Product Description

Product Parameters

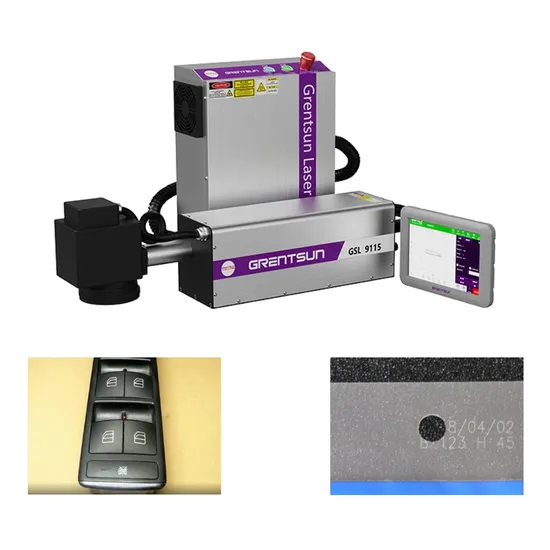

Name of Series	GSL 9000 Series UV Laser coding machine
Laser Power	5W/10W/15W/20W
Laser Wavelength	355nm
Laser beam quality	M2:<1.2
Repeat Positioning Accuracy	0.003mm
Min. Linear Width	0.01mm
Marking Depth	0.01-1mm
Max.Marking Speed	Maximum speed of 12000 mm/s (depending on application and configuration)
Standard Marking Area	110x110mm, 175x175mm, 200x200mm... (more optional on demand)
Rated Voltage	220v~50/60HZ
Cooling	Water / Air Hydro cooling
Lifetime of source	25,000 hours - 30,000 hours
Warranty	1 year
Gross Weight	95kg
IP Level	IP54 (IP65 Optional)

Detailed Photos

Packaging & Shipping

Company Profile
Certifications

FAQ

Q1: How can I get most suitable and best machine for me?
Please reach out to our customer service team and provide details about the material you want to process and how you plan to use the machine. Based on your needs, our experienced customer service team, along with our technicians and engineers, will offer you the best recommendations..

Q2:Compare with other supplier, what's your machine advantage?
Our portable fiber laser marker is equipped with a Raycus laser source, a well-known brand that comes with a 2-year warranty. We use the genuine BJ Jcz control card, ensuring stable performance, along with original EZCAD software, which offers powerful and user-friendly functionality. We also prioritize high-quality components throughout the machine, ensuring excellent overall performance and reliability!

Q3:How's the payment?
We accept payment via Telegraphic Transfer (T/T) to our official company bank account, or via Western Union (WU). Additionally, we accept trade insurance orders made in China.
Q4: This is the first time I use this kind of machine, is it enough easy to operate?
The EZCAD software is user-friendly, and we provide detailed manuals and instructional videos to guide you through the setup and operation. If you need further assistance, our technicians can offer support through TeamViewer or other contact methods such as phone or email.

Q5:What's the guarantee, in case the machine breaks down?
The machine comes with a 1-year warranty, and the Raycus laser source has a 2-year warranty. If there are any issues, our technician will troubleshoot the problem based on your feedback. For parts that are not consumables, we will replace them free of charge if the issue is due to a manufacturing defect.

Q6:If the machine has problem in my place, how could I do?
If the machine encounters any issues under normal use and within the warranty period, we will send you the necessary parts free of charge. Our technician will also provide step-by-step guidance on how to resolve the issue.
