Low Price 360 Degree Swing Universal Milling Machine Xn26 Vertical Cutter Mill

Low Price 360 Degree Swing Universal Milling Machine Xn26 Vertical Cutter Mill

US$5,500.00-10,000.00 1 Set (MOQ)

Basic Info.

Model NO.
XN26
Type
Universal Milling Machine
Object
Metal
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Manual
Automatic Grade
Manual
Precision
High Precision
Certification
CE
Condition
New
Table Size
1200*280mm
X/Y/Z Axis Travel
650*200*450mm
Swivel Angle of Vertical Milling Head
360 Degree
Color
Custom-Made
Weight
1100kg
Voltage
220V/380V/400V/415V
Main Motor
2.2kw
Transport Package
Pallet/Wooden Case
Specification
1700*1500*2000mm
Trademark
TSINFA
Origin
Shandong, China
HS Code
8459590000
Production Capacity
300/One Year

Packaging & Delivery

Package Size
170.00cm * 150.00cm * 200.00cm
Package Gross Weight
1100.000kg

Product Description

Product Description
The XN26 universal milling machine can be equipped with various tools to machine milling planes, slopes, grooves, etc. If universal milling heads, circular workbenches, indexing heads, and other milling machine accessories are used, the machining range of the machine tool can be expanded. Suitable for processing special steel molds, mining equipment, industrial equipment, and other heavy and large-scale machinery.
-Milling head can be rotated 360 degrees
-Worktable 45 degree rotation (optional for some models)-X Y axis automatic feed
-Worktable electric lift Product Parameters
Specification XN26 XN32
Table size (mm) 1200*280 1500*320
Table travel (mm) 650*200*450 800*300*450
Ram travel (mm) 200 200
Swivel angle at awivel head(°) ±360° ±360°
Main motor (kw) 2.2 2.2(V) 3(H)
Distance from spindle to table (mm) 80-500 80-500
Spindle speed Range (r.p.m) 35-1600 35-1600
Horizontal spindle speed range / 40-1300
Overall dimensions (mm) 1700*1500*2000 1850*1560*2250
G.W/N.W /(kg) 1000/1100 1400/1500

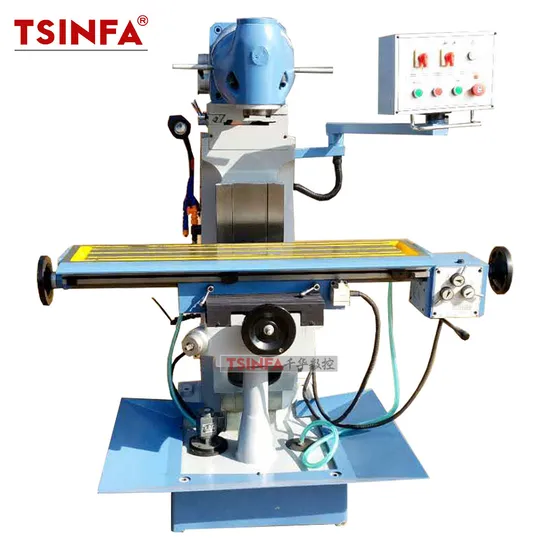

Detailed Photos
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.

FAQ
Q1:How can l choose the most suitable machines ?Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there?Our factory is located in Tengzhou City , Shandong Province, 277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .Q6: What's the MoQ?1 set .(Only some low cost machines will be more than 1 set )We want to know:1. We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible,
better to send us workpiece drawing, so that we can recommend you most suitable model!
2. lf need ClF Price, please kindly tell us the port of destination.
