Coated White Top Liner Paper Production Line

Product Description

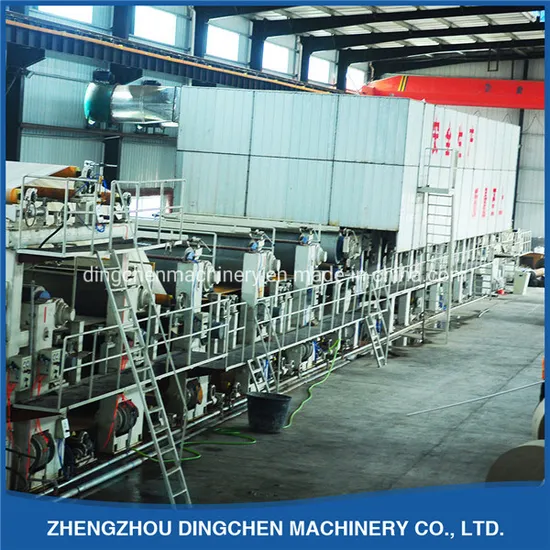

Coated White Top Liner Paper Production Line
I.Technical parameters:
1.Raw material: white shavings and waste paper
2.Output paper: coated duplex board
3. Net paper width: 2400mm
4.Paper grammage: 200-450g/m2
5.Capacity: 50T/D
6.Working speed: 30-70 m/min
7.Design speed: 100m/min
8.wire width:2950mm
9.Rail gauge: 3400mm
10.Drive way: AC frequency conversion adjustable speed, sectional drive

II.Main equipments and structure :
1.Cylinder part:
Φ1500mm×2950mm×3400mm stainless plate cylinder mold 6pcs, Φ450mm×2950mm×3400mm couch roll 6pcs, rubber shore hardness 38ºC±2,Φ500mm×2950mm×3400mm reverse roll 1 pc, rubber shore hardness86ºC±2. Pneumatic control couch roll , Manifold distributor, step diffusion headbox.

2.press part:
Pre-press roll 1 set ,Top roll Φ450mm×2950mm×3400mm natural marble roll.
Bottom roll Φ400mm×2950mm×3400mm rubber roll,rubber shore hardness96ºC±2.
Major diameter blind press,Φ850mm×2950mm×3400mm rubber roll 2 pcs,rubber shore hardness98ºC±2,bottom roll with drive device,Pneumatic control

3.Dryer part:
Φ1500mm×2950mm×3400mm alloy dryer 22pcs, among which there are 2 pcs chromium facing dryer,with
cleaning scraper knife 22pcs,arrangement 14pcs+sizing+8pcs .

4.sizing part:
Top roll Φ800mm×2950mm×3400mm imitation stone roll 1pcs,hardness 100ºC±2
Bottom roll Φ805mm×2950mm×3400mm rubber roll 1pcs,hardness 96ºC±2,double drive device,pneumatic control device

5.coating part:
coating head 2sets,2400mm×4000mm heat air drying box 6sets,pneumatic lifting

6.Calender part: Φ575mm×2950mm×3400mm chilled roll 2 pcs, pneumatic pressure control

7.Winding part: 2400mm horizontal pneumatic winding machine 1 set

8.Rewinding part: 2400mm frame upper feed rewinding machine 1 set.

III.Main equipment parts:

NO.	Equipment	Qty(set)
1	2400mm multi-dryer and multi-cylinder paper machine	1 set
2	Coating machine	1
3	Semi-closed dryer hood	2 sets
4	Axial-flow ventilator	5 sets
5	Type 16 roots vacuum pump	2set
6	Suction box	7sets
7	1.2m2Screw air compresser	1 set
8	Air tank	1 set
9	Frequency conversion controlling cabinet	1 set
10	Working platform	1 set
11	6T boiler	1 set
12	Sizing machine	1set
13	Calender	1 set
14	Horizontal pneumatic winding machine	1 set
15	Frame-type rewinding machine	1 set

IV.Pulp making equipment 1:

1	12m conveyor	1 set
2	10m3 D type hydrapulper	1 set
3	Φ850mm fiber separator	1 set
4	1.8m2 vibration screen	2 sets
5	High consistency desander	1 set
6	Medium consistency desander	1
7	1.6m2 pressure screen	1 set
8	0.6m2 pressure screen	2 sets
9	Low consistency desander	14pcs
10	Φ750 impeller	5sets
11	Φ380 refine	3 sets
12	-150m3 pulp pump	1 set
13	200m3 pulp pump	1 set
14	200m3 pulp pump	1 set
15	-150m3 pulp pump	1 set
16	120m3 pulp pump	1 set
17	250m3 pulp pump	1 set
18	120m3 pulp pump	1 set
19	400m3 pulp pump	1 set
20	100m3 pulp pump	4 sets

Pulp making equipment 2:

1	5m3 hydrapulper	2 sets
2	Φ750 propeller	4 sets
3	bleacher	4 sets
4	100m3 pulp pump	2 sets
5	200m3 pulp pump	2 sets
6	100m3 pulp pump	6 sets
7	Electrical controlling cabinet	16 sets
