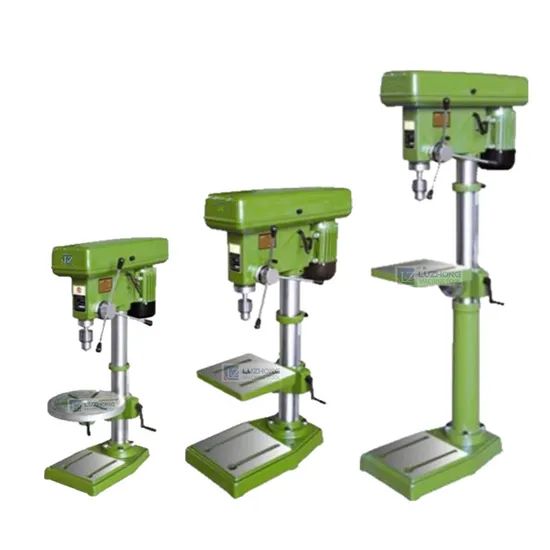

Small Mini Bench Table Metal Drill Press ( Drilling Machine ZQ4113 ZQ4116 ZQ4119 ZQ4132)

Product Description

Small Mini Bench Table Metal Drill Press ( Drilling Machine ZQ4113 ZQ4116 ZQ4119 ZQ4132)
Product Description

Product description:
Light and flexible ,it can be used not only on machine processing,repairing but also DIY repairing and daily use.
Standard accessories :
Drill chuck
Taper sleeve(only MT3 spindle)
Arbor(only taper hole spindle)
drift(only taper hole spindle)
Wrench
Special accessories:
Safety guard
vice Product Parameters
Product main technical specifications:

Model	ZQ4113	ZQ4116/ZQ4119	ZQ4125/ZQ4132	ZQD4125/ZQD4132
Max. Drilling capacity(mm)	13	16/19	25/31.5	25/31.5
Diameter of column(mm)	70	70	85	85
Spindle travel(mm)	85	85	110	110
Distance spindle axis to generating line (mm)	180	180	200	200
Max distance spindle nose to worktable(mm)	390	410	480	390
Max. Distance spindle nose to base(mm)	570	590	670	1140
Spindle taper(mm)	B16	MT2	Mt3	Mt3
Spindle speeds range(r/min)	450-2650	200-2780	200-2280/150-2270	200-2280/150-2270
Spindle speeds series(r/min)	4	12	9/12	9/12
Dimension of worktable surface(mm)	240X240 or Φ300	240×240 or Φ300	280×280 or Φ360	280×280 or Φ360
Dimension of base(mm)	445x270	445×270	566x356	566x356
Overall height(mm)	960	960	1110	1680
Motor(W)	370	370/550	750	750
G.W/N.W(kg)	68/65	68/65	105/98	115/108
Packing size(cm)	91x51.5x27	91×51.5×27	108x77x34	108x77x34

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
