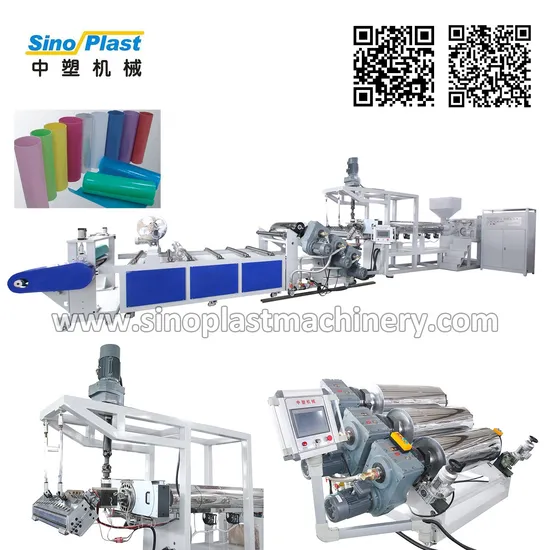

PP PS Plastic Sheet Extruder Extruding Extrusion Line Machine

Product Description

PP PS Plastic Sheet Extruder Extruding Extrusion Machine Line


I. Usage:
SPJ110/33-800 PP/PS Sheet Extruder Machine is use for making plastic PP,PS,PE sheet which for making disposable plastic water drinking cup, ice cream cup, lids, tray, plate, food container etc.

II. Main Parameters:
1. Processed Material: PP/PS/PE Granule or powder
2. Max. width of finished product after slitted: 680mm
3. Thickness of the finished product: 0.3-2.0mm (PP)
0.25-2.0mm (PS)
4. Max. output capacity of extruder: around 150-180Kg/h
5. Machine Frame: square steel

III. Configuration and Specification
1. Direct connection for main motor and gear box
2. Main motor: 55KW
3. Main screw: 110mm, L/D: 33:1
4. Aluminum heater with air fan
5. Non-stop Fast Screen Changer With Double-sieve
6. The effective width of the die head: 850mm
7. Calender Roll Stack
(1) Structure: the three-rollers calender lay on the round with 45° slantways
(2) Roll number: 3
(3) Diameter of roll: 350mm
(4) Roll length: 900mm
8. Single-shaft Winder 1 set
9. Waste sheet reweinder 1 set
10. Thermostat 1 set (only for making PS sheet)
11. Electronic Control Cabinet (one set)
