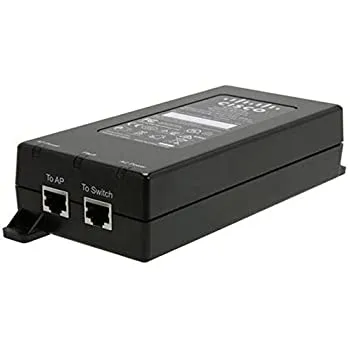

CISCO AIR-PWRINJ6 Aironet Power POE Injector Aironet Power Injector For Aironet Access Points
| US$305.00-505.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AIR-PWRINJ6
Color
Black, Gray
Type
ODM, WiFi Antenna
Internal Structure
Linear Model
Power Source
Push-Pull Type
Connection
Plug In
Bluetooth Standard
1.2
Brand
Cisco Air Pwrin Airont
Antenna Gain
8dBi
Intended For
Wi-Fi
Transport Package
Original
Specification
210.8 x 210.8 x 50.8 mm
Trademark
CISCO
Origin
China
HS Code
8517623700
Production Capacity
1000
Product Description
CISCO AIR-PWRINJ6 Aironet Power POE Injector Aironet Power Injector For Aironet Access Points The CISCO Aironet Power Injector AIR-PWRINJ6= increases wireless LAN deployment flexibility of supported CISCO Aironet Access Points by providing an alternative powering option to local power, inline power-capable multiport switches, and multiport power patch panels.The single-port PoE injector provides up to 30 Watts and is compliant with IEEE 802.3af (15.4 W) and IEEE 802.3at (30 W) systems. This power injector is for use with the CISCO Aironet 2800 series and 3800 series access points.
| 1 | AP Connector Port (Data + Power Out) | 3 | Status LED1 |
| 2 | Switch Connector Port (Data In) | 4 | C13 Power Connector |
| Specification | AIR-PWRINJ6= |
| Dimensions (W, H, L) | Model 1: 53 mm x 32.5 mm x 140 mm 2.09 in x 1.28 in x 5.5 in Model 2: 65 mm x 36 mm x 140 mm 2.55 in x 1.42 in x 5.51 in |
| Data Rates | 10/100/100 Mbps |
| PoE Output | Pin Assignment and Polarity: 4/5 (+), 7/8 (-) Output Power Voltage: 55V DC |
| User Port Power | 30 Watts |
| Input Power Requirements | AC Input Voltage: 100 to 240V AC AC Input Current: 0.67 A @ 100 - 240 V AC AC Frequency: 50 to 60 Hz |
| Weight | Model 1: 0.44 lbs (200 g) Model 2: 0.47 lbs (215 g) |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Environmental Conditions | Operating Ambient Temperature: -4ºF to 104ºF (-20ºC to 40ºC) at 30 W -4ºF to 122ºF (-20ºC to 50ºC) at 25 W Operating Humidity: Maximum 90%, Non-condensing Storage Temperature: -4ºF to 158ºF (-20ºC to 70ºC) |
| Reliability | MTBF: 100,000 hrs @ 25ºC |
| Thermal Rating | 20 BTU/Hr @ 240 V AC |
| Regulatory Compliance | IEEE 802.3 at (PoE), China RoHS Compliant, WEEE Compliant, CE Compliant |
| Electromagnetic Emission and Immunity | FCC Part 15, Class B EN 55022 Class B (Emissions) EN 55024 (Immunity) VCCI |
| Safety | UL 60950-1 IEC/EN 60950-1 |
| Stacking restrictions | Do not stack. Do not bundle the power injector and AC power cable. |
Packing and Delivery
| Packaging DetailsOrigial Box Packing |
