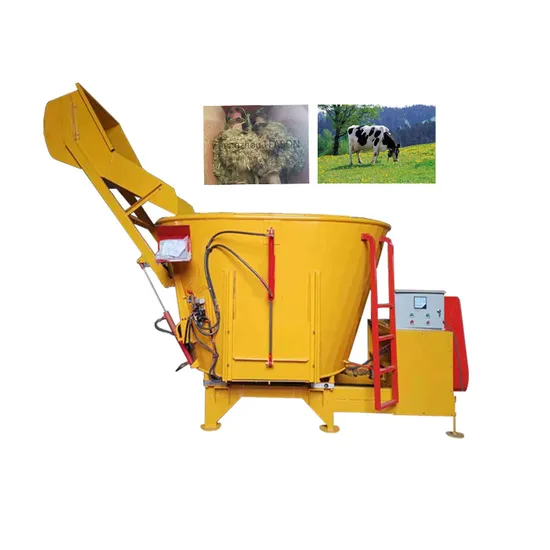

Vertical Pto Type Animal Cattle Feed Mixer with Crusher Machine

Product Description

Vertical PTO Type Animal Cattle Feed Mixer with Crusher Machine
Products Description
(1) This product has advanced and reasonable design, the bottom of the trough adopt high quality alloy steel production, safe and reliable work. Made of unique cutting blades with high wear-resistant materials, dragon blade material with high-quality high-alloy steel, thus greatly improving the product's life.
(2) The product is flexible and convenient operation, safe and reliable.
(3) Each feed The mixer can feed 200-2000 cows per day, which can replace more than 20 workers to reduce the labor intensity and improve the feeding efficiency.
Features
1 TMR mixer can directly mix various feeds such as hay, straw, silage.
2 When the feed is processed, the coarse fiber will not be destroyed.
3 The mixing chamber body has less wear and long service life.
4 With automatic weighing device, the amount of addition can be set at any time.
5 Feed mixing uniformity is high, energy intake is balanced, and milk production is increased.
Working Picture
Detail Image
Specification

Model	9JGW-13	9JGW-10	9JGW-5
Overall size(mm)	4700*1900*2300	4200*1900*2300	3700*1900*2300
Qty of blade(pcs)	Moving blade 52 Fixed blade 8	Moving blade 42 Fixed blade 6	Moving blade 37 Fixed blade 4
Rotating speed(r/min)	12-16	12-16	12-16
Weight(kg)	2600	2100	1900
Capacity of material hopper(m³)	13.2	10.03	5.3
Matching power(kw)	22-30	18.5-22	15-18.5
Productuvuty(kg/h)	5000-7000	3800-6000	2000-4000

Raw Material & Final Product
Packing&Shipping
Packing Details: International standard packaging in wood case container. Shipping Time: Shipping in 7-15 days after payment.
Company Information
Zhengzhou LEABON Machinery Equipment Co., Ltd is professional manufacture for feed pellet making line,wood pellet making line, briquette making line, carbonization stove, filtration equipment, etc. LEABON has extensive expertise in the areas of engineering. The continuous research helps us to develop the latest technology in biomass new energy field more effectively.
