Fast Thermal Wood Dryer Machine Heat Treatment Drying Tank Kiln Cooking Cylinder

Product Description

WOOD THERMAL MODIFIED SYSTEM
XNH wood thermal modified system is independently developed by Institute of Drying Technology of Nanjing Forestry and Jiangsu XINAN Woodrying systems Co., LTD on the basis of careful study on the existing wood high temperature heat-treated equipment aboard combining with domestic technology. The equipment has rational and advanced parts, safe and reliable performance. The equipment could improve the function of wood, so finite and rare wood resource could be utilized effectively, wood resource could be fully developed as solid wood products. XNH wood thermal modified system has two structures of all-aluminum assembled kiln and carbon steel and stainless steel composite cylinder for customers to choose.

Made-to-measure to meet your requirements
No matter how much timber you need to dry at one go, say from 10m3 till 200m3, XINAN will always have the most suitable kiln for you. Product Description
XNH Main Technology Coefficient of XNH Series

Model	Capacity(m3)	Dimension of kiln(m)	Dimension of stack(m)
(All-aluminum assembled kiln)
XNH-TS16	16	4.5×4.4×5.0	4.0×2.4×3.2
XNH-TS18	18	4.5×4.6×5.0	4.0×2.7×3.2
XNH-TS25	25	6.6×4.4×5.0	6.0×2.4×3.2
XNH-TS28	28	6.6×4.6×5.0	6.0×2.7×3.2
XNH-TS33	33	8.6×4.4×5.0	8.0×2.4×3.2
XNH-TS35	35	8.6×4.6×5.0	8.0×2.7×3.2

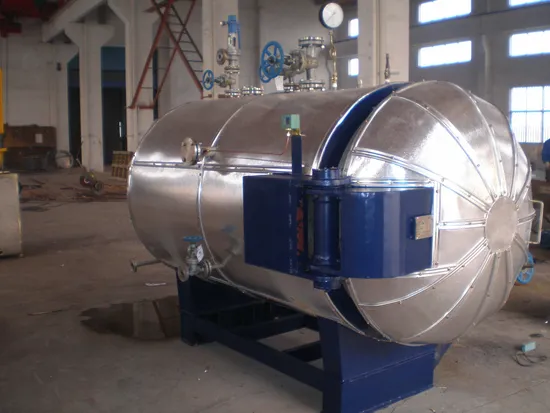

-(carbon steel and stainless steel composite cylinder)
XNH-CS4	4	φ2.2×4	4×1.2×1.5
XNH-CS6	6	φ2.2×6	6×1.2×1.5
XNH-CS8	8	φ2.2×8	8×1.2×1.5
XNH-CS15	15	φ2.8×8	8×1.8×2.0

Company Profile
Certifications
