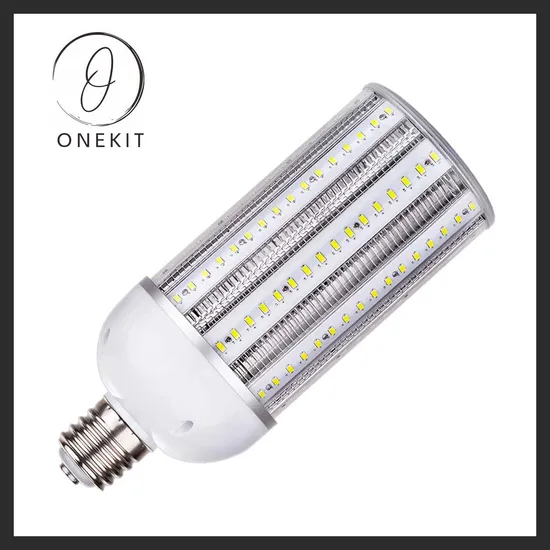

Energy Saving CE RoHS 30W 50W 80W 100W 120W Fin Aluminum Bright SMD LED Corn Light

Product Description

Energy Saving CE ROHS 30W 50W 80W 100W 120W Fin Aluminum Bright SMD LED Corn Light
Led Corn Bulb Light is designed to replace HID counterparts. It offers an average of 75% more illumination over the holder HID lamps. It's widely used as retrofit light source in different lighting fixtures such as post top, wall packs,highbay, shoebox,etc for different applications gardens, paths, streets, and warehouses.
Typical benefits of Onekit Led Corn Bulb from 20W to 150W:
1. Quality Ensurance-Made of aviation fin aluminum housing, best performance on heat dissipation.CE, RoHS, ETL,FCC certified.
2. Super Bright-Over 125 lm/w lighting efficiency,CRI>85,360 degrees light angle.
3. ECO performance-No RF interference,no IR/UV radiation,no mercury polution,evergy saving(70%~80%).
4. Dust and water protection as proven by IP64
5.Multiple choice of lamp holder: E26/E27E39/E40/EX39
Technical Specifications

Prdouct Model	Wattage	Input Voltage	Lumen	CRI (Ra)	Color Temperature	Power Factor	Light Angle	Dimensions
LED Corn Bulb	20W	AC 86-265V	2500LM	>80	2700-6500K	>0.9	360°	Φ70x177mm
LED Corn Bulb	30W	AC 86-265V	3750LM	>80	2700-6500K	>0.9	360°	Φ70x197mm
LED Corn Bulb	40W	AC 86-265V	5000LM	>80	2700-6500K	>0.9	360°	Φ70x212mm
LED Corn Bulb	50W	AC 86-265V	6250LM	>80	2700-6500K	>0.9	360°	Φ70x230mm
LED Corn Bulb	60W	AC 86-265V	7500LM	>80	2700-6500K	>0.9	360°	Φ106x220mm
LED Corn Bulb	80W	AC 86-265V	10000LM	>80	2700-6500K	>0.9	360°	Φ106x245mm
LED Corn Bulb	100W	AC 86-265V	12500LM	>80	2700-6500K	>0.9	360°	Φ120x245mm
LED Corn Bulb	120W	AC 86-265V	150000LM	>80	2700-6500K	>0.9	360°	Φ120x280mm
LED Corn Bulb	150W	AC 86-265V	18750LM	>80	2700-6500K	>0.9	360°	Φ120x300mm

Multiple Options for color of housing and type of PC cover
LED Corn Bulb replacement with equivalent brightness

Led Corn Bulb	CFL	HPS/MHL/HQL	Incandescent Bulb
30W	65W	70W	300W
40W	85W	100W	400W
50W	105W	150W	500W
60W	150W	175W	600W
80W	185W	250W	800W
120W	250W	400W	1000W

Installatioin Instruction
Applications
Packaging & Shipping
Each lamp will be individually put into a plastic bag before packed into a box. Each box will include foaming protect for both head and end of the lamp. Each lamp will be packed in a brown kraft box, normally 12 boxes in a carton.

Customized Support
Supplier's Commitments
Quality Assurance
1. All raw material is 100% brand new.
2. Every lamp will be tested itself at least 24 hours before delivery.
3. Every lamp will be passing strict QC procedures before delivery.
Safety Packaging
1. Each lamp to be packed individually with a PE bag.
2. Each box with strong foaming protection along with the product.
Fast Delivery
1. Samples take 2-4 days ready to ship via UPS/DHL/FedEx/TNT courier.
2. Standard production lead time within 15 working days to ship by air cargo or by sea.
Post Sales Support
1. Free replacement for any manufacturing defect.
2. Active coordination and response for any after-sales concern.
