High-Efficiency Slst1300 Servo Concrete Block Making Machine with PLC Control

Product Description

Product Description

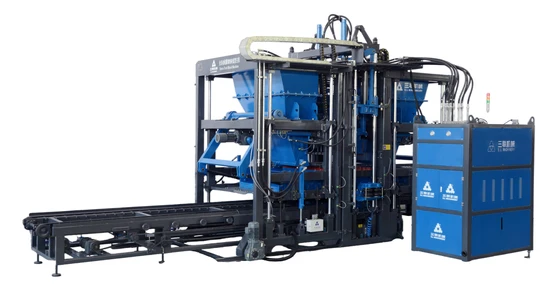

SLST1300 Fully Automatic Servo Brick Machine Block Making Machine
The groundbreaking SLST1300 fully automatic servo wall and floor brick production line is engineered with state-of-the-art servo vibration and servo hydraulic technology. This versatile machine is capable of extraordinary adaptability with optional features such as lateral shifting, core pulling, EPS board conveying, and rapid mould changing to maximize productivity tailored to your specific needs. It seamlessly supports a wide array of standard concrete products including curbstones, hollow bricks, PC imitation stone bricks, solid bricks, and water slope protection bricks, ensuring unmatched quality.
1. Production efficiency increased by an impressive 20%
2. Energy consumption intelligently reduced by 15%
3. Noticeable noise reduction by 10%
Technical Parameters

Model	SLST2000	SLST1500	SLST1400	SLST1300	SLST1000
Pallet Size(mm)	1400x1350	1400x1200	1400x950	1400x750	1220x900
Max.Molding Area(mm)	1310x1300	1310x1150	1310x900	1310x700	1100x860
Min.Product Height(mm)	45	45	45	45	45
Max.Product Height(mm)	500	500	500	500	350
Cycle Time(s)	Solid Brick 12-15 Paver 12-25	Solid Brick 12-15 Paver 12-25	Solid Brick 12-15 Paver 12-25	Solid Brick 12-15 Paver 12-25	Solid Brick 12-15 Paver 12-25
lf the required pallet size or product heights are not listed here, we are happy to make special plans for you.

Production Table

Model	Brick Size	Production(Per mould)	Production(8h one shift)
SLST2000	Hollow Brick 390x190x190mm	18	≈34,500Pcs 480m³
	Solid Brick 240x115x53mm	105	≈252,000Pcs 368m³
	Paver 200x100x60mm	66	≈95,000Pcs 1900m²
SLST1500	Hollow Brick 390x190x190mm	15	≈28,000Pcs 394m³
	Solid Brick 240x115x53mm	94	≈225,600Pcs 330m³
	Paver 200x100x60/80mm	60	≈86,000Pcs 1700m²
SLST1400	Hollow Brick 390x190x190mm	12	≈22,400Pcs 315m³
	Solid Brick 240x115x53mm	73	≈175,200Pcs 256m³
	Paver 200x100x60/80mm	48	≈68,800Pcs 1350m²
SLST1300	Hollow Brick 390x190x190mm	9	≈17,200Pcs 240m³
	Solid Brick 240x115x53mm	55	≈132,000Pcs 193m³
	Paver 200x100x60mm	36	≈51,800Pcs 1030m²
SLST1000	Hollow Brick 390x190x190mm	10	≈18,600Pcs 262m³
	Solid Brick 240x115x53mm	62	≈148,000Pcs 216m³
	Paver 200x100x60/80mm	40	≈57,300Pcs 1130m²
Difference between different raw material and ratio If a cuber is required,the capacity may be affected

We offer robust support for common materials and are also equipped to handle alternative materials, as illustrated in the accompanying picture.

Detailed Photos
System Function
Advanced Servo Vibration System and Innovative Servo Control System
Efficient Servo Hydraulic System and Rapid Quick Mould Changing
Mould Box Damping Airbag and Precision Mould Head Shifting Device

State-of-the-art PLC Controller
Project Cases
Brick Example


FAQ
Q1: Do you offer warranty on your equipment?
A1: Yes, we offer a full warranty on new equipment purchasing.
Q2: which payment terms you can do?
A2: We can work on T/T term, L/C term and T/T & L/C term:
T/T term: 30%T/T as deposit, the remainder 70% should be paid before shipment.
L/C term: 100% by irrevocable L/C at sight without "soft clauses"
T/T & L/C term: 30% T/T as deposit, the balance 100% by irrevocable L/C at sight without "soft clauses"
Q3: Where is the port of loading?
A3: Normally the port of loading is XIAMEN PORT, FUJIAN, CHINA; also it can be the main port of CHINA MAINLAND
Q4: How about the installation and commissioning on new purchases?
A4: We will send our technicians to your place to guide the installation, commissioning and training your operator. You should pay for board(meals), lodging expenses and a daily allowance of USD$200 per person per day for our service engineer ; prepare the tools (crane, welding machine and electric wrench), the power and the materials for testing work; do the foundation work before our technician arrive your work site.
Q5: How much space is necessary for brick machine, wall panel machine and concrete batching plant?
A5: Normally, a brick factory needs at least 3000m2 of land, wall panel factory needs 6000m2 land, concrete batching plant requires 3000m2 of land; the land area includes raw materials stacking, equipment area, office space, vehicle access , finished products area and so on.
Q6: The durability of the block making machine?
A6: The main steel structure equipped with Q235 heavy duty steel, it's durable.
The mould frame is made of 16 Mn steel, the press board made by 1045 heavy duty steel, can press more than 100,000 times.
Equipped with Panasonic PLC and frequency transformer; SIEMENS electric element.
Equipped witorthman hh Nydraulic pump and valves.
Under regular operation, our machines can running more than 20 years, while it depend on the daily maintenance.
In Algeria, Brazil, Egypt and Saudi Arabia, S.L MACHINERY 2nd hand block making machin are popular, so after you finish the project, you can sell it as 2nd hand machine.
Q7: How long will the delivery time take?
A7: Normally it will take about 35-40 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 30 days.
Q8: Can I visit your factory?
A8: Of course. We warmly welcome you to visit our factory. And we provide you great services like airport pick up, hotel booking, etc.
Q9: What is your technological advantage of block machine?
A9: 1. Frequency Conversional Motor Automatic Vibration System ;
2. SIEMENS PLC System
3. Oil Cylinder Synchronously Demoulding
4. Noise & Aftershock Reduction System
5. More Homogeneous and Faster Mixture Discharging
6. Full servo production line with high efficiency and energy saving(Optional)
7. Remote monitoring equipment, timely provision of equipment failure warning
Q10: What is your warranty?
A10: We are responsible for all the repairs that caused by our quality problems within one year's warranty. Foreign accessories are generally delivered by DHL in orde to provide service for foreign customers promptly.
Q11: If the warranty expired, will you continuely to provide us after-sale service?
A11: The customers whose products have passsed its warranty date are entitled to enjoy our after-sales service for life.
Q12: What Raw Materials can be used for making blocks and bricks ?
A12: Cement, Sand, Fly ash, Coal residue, Coal wastes, Sand, Crushed Stone ,Construction wastes ,etc.
Q13: This machine can make different types and designs of blocks & bricks?
A13: Yes, the same machine can make different types and designs of hollow blocks , solid bricks, color pavers, curbstone etc. it only need change different moulds accordingly.
Q14: What is your company advantage?
A14: Our compnay has more than 30 years experience in the the field of block machine. We can not only offer you the machine but aslo the comprehensive service, one-station service.
Q15: How many countries have you sold to?
A15: Our machine has been exported to more than 102 countries and regions, up to 5000 users.
