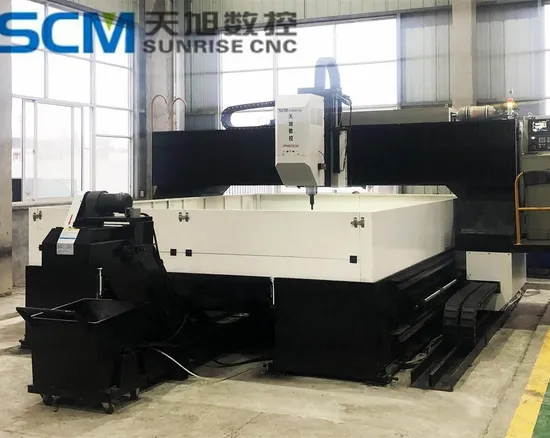

TPHD3030 High speed SIEMENS CNC drilling tapping milling machine for steel plates tube sheets
Applicable Industry:
The machine is the automatic special drilling machine for steel plates/connection plates, mainly in the field of angle steel tower industry, structure storage facilities, and steel structure construction industries etc.
Advantages of high speed CNC drilling:
1. High speed Max. to 3000 rpm;
2. High production efficiency, for example drill one 30mm hole on 40 thickness just about 6 seconds;
3. High precision, the re-position precision 0.08mm;
4. Controlled by SIEMENS CNC system;
5. Inner-cooling;
6. Automatic lubrication system;
7. Can do the drilling, milling, tapping, reaming works. Specification:

Parameter Name	Item	Parameter Value
Max. size	L X W	3000X3000mm
Max thickness		250mm
Work table	Width of T slot	28/500mm
Vertical slide type drill head	Quantity	1
	Main spindle taper hole	BT50
	Max drill diameter(common carbon steel)	φ40mm(carbide drill)
		φ50mm(high speed twist drill)
	Main spindle speed	30-3000r/min
	Motor power of spindle	22kW
	Distance between spindle tip to work table	300-800mm
(X axis) Gantry longitudinal move	Max. stroke	3000mm
	Moving speed of X axis	0-8m/min
	Servo motor power of X axis/torque	3kW/28.4Nm
(Y axis) Power head transversal move	Max stroke	3000mm
	Moving speed of Y axis	0-8m/min
	Servo motor power of Y axis/torque	3kW/28.4Nm
(Z axis) Vertical slider feeding	Stroke of Z axis	500mm
	Feeding speed of Z axis	0-5m/min
	Servo motor power of Z axis/torque	3kW/28.4Nm
Positioning accuracy	X/Y axis	≤0.08mm/ Full length
Repositioning accuracy	X/Y axis	≤0.04mm
Hydraulic system	Hydraulic pump pressure/flow rate	6.5MPa /25L/min
	Hydraulic pump motor power	3kW
Pneumatic system	Compressed air pressure	≥0.4MPa
Chip cleaning and cooling	Chip cleaner type	Plate chain type
	Chip cleaner no.	1
	Chip cleaning speed	1m/min
	Chip cleaner motor power	0.75kW
	Motor power of inner cooling water pump	3kW
	Motor power of Outer cooling water pump	0.75kW
Automatic lubricating system	Lubrication pressure	2MPa
	Lubrication point oil injecting amount	0.1mL
	Lubrication period	6-10min
Electric system	CNC system	FAGOR8055 or SIEMENS
	CNC axis NO.	4
Whole power of motors		Approx. 55kW
Overall size	LxWxH	Approx. 6.2X6.1X3.6 m
Weight	Approx. 40t
