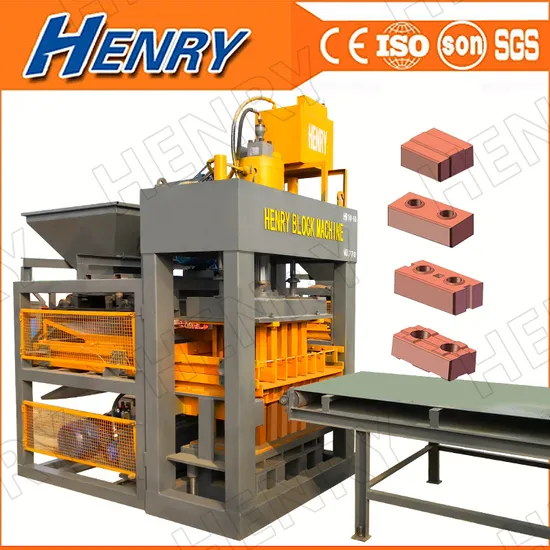

200 Tons Fully Automatic Hr10-10 Super Hydraulic Soil Clay Interlock Brick Machine/ Cement Brick Machine

Product Description

Product Description
This machine use the most advanced static press system, matched with high pressure vane pump, the machine can provide pressure of 200T and above. The control system adopts Delta PLC and a human-computer interaction interface, which can adjust the corresponding parameter values according to different raw materials. The hydraulic system adopts domestic well-known brands and has high durability. Single proportional valve control can freely adjust all oil pressures.
The compaction system adopts a segmented design, and the main oil cylinder is equipped with an auxiliary oil tank, which can be pressed down instantly with the help of a filling valve. Double oil cylinders on both sides are responsible for lifting and lowering, which greatly improves work efficiency The control system comes with a two-way compaction system, you can freely choose one-way or two-way compaction to meet the needs of different raw materials.
HR 10-10 has more advantages more than previous models :
1. 35 MPa plunger pump is stable and efficient
2. Advanced PLC control system, PLC comes from Delta
3. Touch screen design, the man-machine interface is simpler and easier to understand
4. 200 tons of design pressure is enough to make high-density bricks
5. The compression ratio can be adjusted to adapt to different raw materials
Specification parameter

Overall Size	3200*1850*3400mm
Shaping Cycle	10-15 seconds
Main Power	18.5kw
Voltage	380v/50 hz 3 phase ( Adjustable)
Production Capacity	2000-2400 bricks / per hour
Pressure	200 tons ( Adjustable )
Total Weight	5500kgs

The high-speed 100-ton hydraulic compressed earth block machine is a large-scale improved mechanical equipment, which is mainly used to press various clays and other cohesive soils into various shapes of bricks, tiles and building materials. The specific structure and definition are as follows:
1. Pressure system: The high-speed 100-ton hydraulic earth machine adopts a hydraulic system, including an oil source, oil pump, pressure valve, and especially a 100-ton grade oil cylinder, etc., which are mainly used to provide the pressure required for pressing.
2. Gearbox: The gearbox is an important part of the machine, mainly used to transmit power and provide sufficient speed and torque. As the hydraulic oil flowing speed normally slows down while the oil quantity gets more, the gearbox can push oil recycle more quickly.
3. Pressing system: The hydraulic pressure drives the oil cylinder to slide the pressing plate towards the mold box and press the earth into the mold to form various shapes of blocks, tiles, and building materials.
4. Mold: The mold is mainly made of manganese steel and 345-type steel plate after heat treatment. It is used to shape earth and clay. You can change different molds at will and press out different types of interlocking bricks. It is also straightforward to replace molds, and The price is also very favorable.
5. Control system: The control system is used to adjust the pressure, speed and other factors during the pressing process through PLC, solenoid valve, oil valve and other electronic equipment to ensure the quality and efficiency of pressing.
Solenoid Valve
Safe,Suitable for corrosive, toxic or high and low temperature media, Fast response, controlled within tens of milliseconds
Block Mould
Carburizing,heat treatment, wear resistance. Wire cutting technology,small error Carbon dioxide protection welding the welding body is firm and does not crack
Electrical Motor
High efficiency motor special line guarantee of strong power Long service life adapt to different needs
Electric Cabinet
Brand electronic components, fast response, stable performance, good quality, long life, reasonable layout, easy to replace
Air Bag Clip
The airbag clip out brick to avoid damage to the bottom of the brick The inlet pressure is adjustable suitable for various sizes of bricks Made of imported rubber long life, not easy to get old
Steel Plate Material
Using national standard 345# steel plate, high strength, high toughness, good wear resistance, crack resistance and oxidation resistance
Related Products
Henry Intelligent Brick Machine Manufacturer,who is specializing in the design ,production and sales of clay and cement interlocking brick machines. This is the world's New 200-ton press machine .which integrates high speed and high pressure!
A secondary feeding system is added to ensure zero error in the material feeding amount,
The world's new air bag clip mode is adopted, which solves the drawbacks of bricks being broken.
Take the lead in using high-speed flushing valve technology, allowing hydraulic oil to be injected into the cylinder at the fastest speed, and speedup 10 seconds than normal ones.
The using of the water flow cooling system solves the technical bottleneck of the weak dilution of hydraulic oil in the high temperature area of 35 degrees. At the same time, the imported high-precision solenoid valve, relief valve and other core components ensure zero failure of the equipment FAQ
Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.
Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.
Q:What is your Minimum Order Quantity?
A:Minimum order quantity is 1 set machine, anyway, special will bu give on larger scale.
Q:How does your factory do regarding quality control?
A:Quality first,customers foremost".We always attach great importance to quality controlling from the very beginning to very end.
Q:May I visit your factory?
A:Sure,welcome any time .We can also pick you up at airport and station.
If you are interested in our products please contact with us.We will reply you as soon as possible. We believe that we are always your honest and reliable supplier.
