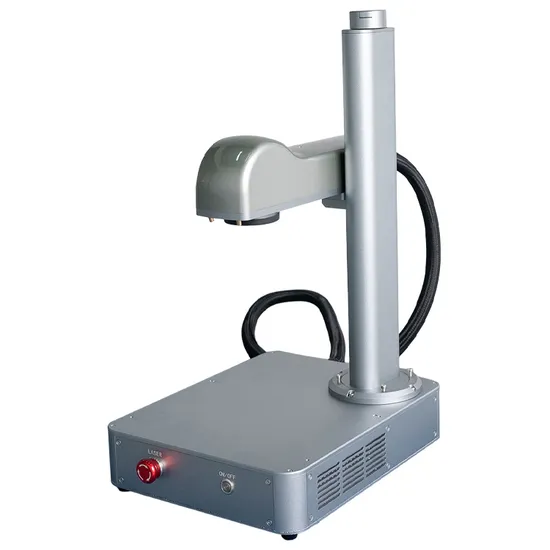

Newest M5 Mini Laser Printer Metal Carving Machine Aluminum Stainless Laser Marking Machine
| US$2,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M5
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Continuous Wave Laser
Laser Wavelength
CO2 Laser
Laser Classification
Free Electron Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Weight (Kg)
9kg
Key Selling Points
Easy to Operate
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Ma
Marking Area
300mm*300mm
Mode of Operation
Continuous Wave
Configuration
Bench-Top
Application
Laser Marking
Control Software
Ezcad
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Warranty of Core Components
3 Years
Transport Package
Single Item
Specification
55*44*69 cm
Trademark
guangwei
Origin
China
Product Description
| Model | JFM5-20 | JFM5-30 |
| Laser source model | MFP-20M | MFP-25M |
| Output Power | 19W | 25W |
| Beam quality M2 | ≤1.4 | ≤1.4 |
| Pulse repetition frequency | 27-60 kHz | 30-60 kHz |
| Laser wavelength | 1064±5 nm | |
| Output power stability | <3% | |
| Working life | About 100,000 working hours (non-lifetime) | |
| Marking range | 100~150mm (range optional) | |
| Engraving depth | ≤1mm (depending on power and time) | |
| Engraving speed | ≤10000mm/s | |
| Repeat accuracy | ±0.002 | |
| Minimum marking line width | 0. 1mm | |
| Minimum character height | 0.15mm | |
| Cooling way | Built-in air cooling | |
| System power supply | 500W / 220V / 50Hz (110V can be connected) | |
| Temperature humidity | 0~40°, 30% RH 85%, air conditioner should be installed when used outside the range | |
| Oil mist, condensation | Not allowed | |
| Support system | Windows | |
| Dimensions | 460X300X683mm | |
| Packing size | 550X440X690 mm | |
| Total Weight | About 25kg | |
