Semi-automatic sample weaving machine for yarn testing

Product Description

Product Description
Product Description
Product Application.

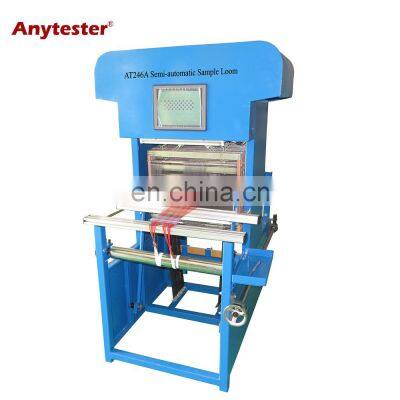

AT246A Semi-automatic Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of shedding mechanism, weft insertion mechanism, beating-up mechanism, take-up mechanism, let-off mechanism, weft selection mechanism, electrical control mechanism, etc. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.

Specifications
Shedding Method		Dobby
Reed width		16inch or 20inch
No. of heald frame		16 (20 optional)
Let-off		Manual
Shedding		Pneumatic & PLC control
Color selection		Manual
Beat-up		Manual
Take-up		Manual
Air pressure		0.45~0.8Mpa
Air consumption		Max. 200L/min
Power		A220V 50Hz, single-phase
Dimensions		1300×980×1510mm (L×W×H)
Weight		Approx. 200kg

Details & Features
> Large LCD display
> Touch screen operation
> PLC control
> with 2G memory capacity to store designed patterns
> Designable and editable patterns and USB interface to share designed patters;
> Integrally welded by seamless rectangular steel pipe, reasonable construction and good rigidity;
> Outer surface treated by baking varnish, good brightness and nice appearance;
> Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;
> With illuminating lamps;
> Stable operation, low noise and high reliability;
Packing & Delivery

Packaging
Size	140(L) * 100(W) * 180 (D)
Weight	200 Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.
