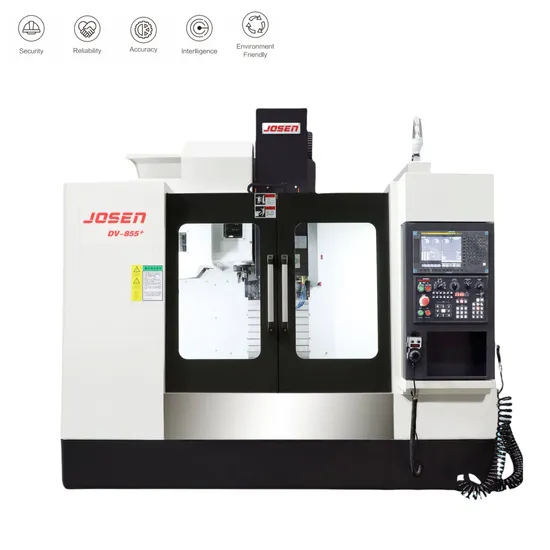

Heavy-Duty Vertical Milling Machining Center CNC for DV855 Machinery
| US$20,000.00-40,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DV-855
Type
Tool Milling Machine
Object
Tool/Hardware/
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001, ISO 14000
Condition
New
Power
25kVA
Transport Package
Wooden/Iron Bracket/Wooden Box
Specification
2500*2800**2800mm
Trademark
Josen
Origin
Changzhou, Jiangsu, China
HS Code
8457101000
Production Capacity
3000pieces/Year
Packaging & Delivery
Package Size
280.00cm * 310.00cm * 283.00cm
Package Gross Weight
5500.000kg
Product Description
Heavy-Duty Vertical Milling Machining Center CNC for DV855 machinery Product Description
Basic Info
| Number | Name | Number | Name |
| 1 | FANUC 0I-MF CNC controller | 10 | Chip pan and water tank |
| 2 | Full cover shroud | 11 | Transformer |
| 3 | Automatic lubricant system | 12 | Spindle air curtain dust protection syste |
| 4 | Ground bolts and spacers | 13 | Mechanical, electrical and operating instructions |
| 5 | Tool-box | 14 | Rigid tapping |
| 6 | Work light | 15 | Electrical box heat exchanger |
| 7 | Warning light | 16 | Machine cleaning water gun |
| 8 | M30 automatic power-off system | 17 | Three-axis slide telescopic shield |
| 9 | Portable chip blowing air gun | 18 | 24-blade arm type tool magazine |
Product Specification
| Description / Machine Model | Unit | DV-855 |
| Itinerary | ||
| X-axis travel | mm | 800 |
| Y-axis travel | mm | 500 |
| Z-axis travel | mm | 550 |
| Distance from nose of spindle to table surface | mm | 120-670 |
| Workbench | ||
| Working table size (X*Y) | mm | 1000*500 |
| Table T-slot size (width * number of slots * spacing) | mm | 18*5*80 |
| Max. loading capacity of working table | KG | 600 |
| Spindle | ||
| Spindle motor (continuous/30 minutes) | kw | 7.5/11 |
| Spindle speed | rpm | 10-10,000 |
| Spindle inner taper bore | BT40 | |
| Three axis | ||
| X/Y/Z axis motors | kw | 1.8/1.8/3 |
| Feed rate | ||
| Rapid feed rate (X/Y/Z) | mm/min | 48000/48000/48000 |
| Fastest cutting feed rate | mm/min | 1-10,000 |
| Tool change system (optional) | ||
| Tool magazine capacity (standard/optional) | set | 24 |
| Tool magazine form | Knife arm type | |
| Latin form | MAS-P40-1(45°) | |
| Maximum tool diameter of adjacent tools | Ø80 | |
| Max. tool diameter of empty adjacent tool | Ø150 | |
| Maximum tool length | mm | 300 |
| Maximum tool weight | kg | 7 |
| Machine accuracy | ||
| Three-axis laser positioning accuracy (JIS6338 actual measurement method) | ||
| Positioning accuracy (full stroke) | mm | ±0.005 |
| Repeat positioning accuracy (full stroke) | mm | ±0.003 |
| System | ||
| Controller | FANUC 0I-MF | |
| Oil pressure system | ||
| Water tank capacity | liter | 220 (rear) |
| Pneumatic pressure requirements | kg/cm2 | 6 |
| Electricity | ||
| Power Specifications | AC380±10%,3 phase,60Hz/50Hz | |
| Electricity demand | KVA | 50 |
| Other | ||
| Machine weight | T | 5.1 |
| Front Elevation | Right Elevation |
