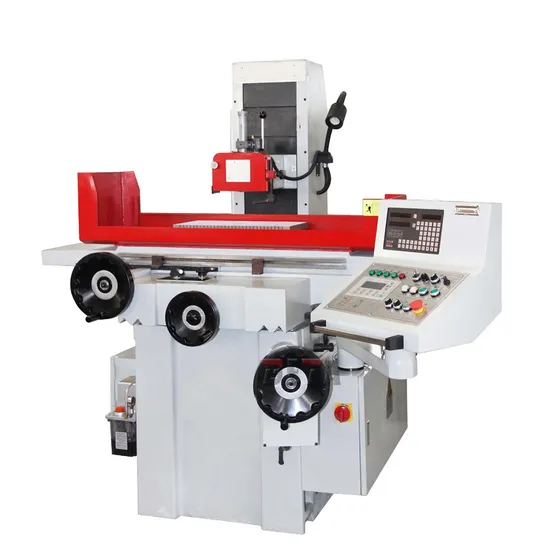

Saddle Moving Hydraulic Servo Motor Surface Grinder for Metal
Basic Info.
Model NO.
SGA2550AHD
Type
Surface Grinding Machine
Processing Object
Metal
Abrasives
Grinding Wheel
Controlling Mode
PLC Control
Automatic Grade
Automatic
Cylindrical Grinder Type
Surface Grinding Machine
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Automatic PLC Hydraulic Surface Grinding Machine
Model
Sga2550ahd
Magnetic Chuck Table Size
250X500mm
Max. Loading Capacity
180kg
Grinding Type
Surface Grinding for Metal
Chuck
Magnetic Chuck Table
Delivery Time
2 Month
Warranty Time
12 Months
Voltage
380V
Cross Moving
Servo Motor
Longitudinal Moving
Hydraulic
Vertical Travel
Servo Motor
Control
PLC Automatic Control Grinding
Grinding Wheel Size
200X20X31.75mm
Motor Power
2.2kw
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 210.00cm * 218.00cm
Package Gross Weight
1800.000kg
Product Description
Saddle Moving Hydraulic Servo Motor Surface Grinder for Metal
Standard accessories:
PLC automatic grinding controller ,
Standard grinding wheel ,
Grinding wheel flange, Wheel extractor,
Working lamp, Balancing arbor,
Electric magnetic plate 250x500mm,
Wheel dresser stand, coolant tank,
Leveling wedge and bolt, Tools & Tool box
Optional accessories:
Dust exhaust apparatus
Balance stand
parallel dresser
2-axis digital readout
closed guard of worktable
closed guard of oil tank
magnetic separator
magnetic separator & paper filter
Luxury splash board
Closed wooden case packaging
| Model | Unit | SGA2550AH | SGA2550AHR | SGA2550AHD |
| Table size | mm | 254*508 | 254*508 | 254*508 |
| Magnetic chuck size | mm | 250*500 | 250*500 | 250*500 |
| Max.distance from spindle center to table | mm | 450 | 450 | 450 |
| Table cross travel | mm | 275 | 275 | 275 |
| Table longitudinal travel | mm | 560 | 560 | 560 |
| Max.loading capacity (include chuck) | kg | 180 | 180 | 180 |
| Speed of table longitudinal move | m/min | 5~25 | 5~25 | 5~25 |
| Cross motion intermittent feed rate | mm/t | 0.1~8 | 0.1~8 | 0.1~8 |
| Cross motion rapid speed | mm/min | 990 | 990 | 990 |
| Cross motion feed of handwheel | mm/div | 0.02 | 0.02 | 0.02 |
| vertical motion auto down feed rate | mm/t | - | - | 0.005~0.5 |
| vertical motion rapid down speed | mm/min | - | 650 | 480 |
| vertical motion feed of handwheel | mm/div | 0.005 | 0.005 | 0.005 |
| spindle rotating speed | r/min | 2850 (50HZ) / 3450 (60HZ) | ||
| grind wheel size | mm | 200*20*31.75 | ||
| spindle motor power | kw | 2.2 | ||
| floor space (L*W*H) | mm | 2300*1600*1675 | ||
| Gross weight | kg | 1800 | ||
| Packing size (L*W*H) | mm | 2000*2100*2150 | ||
