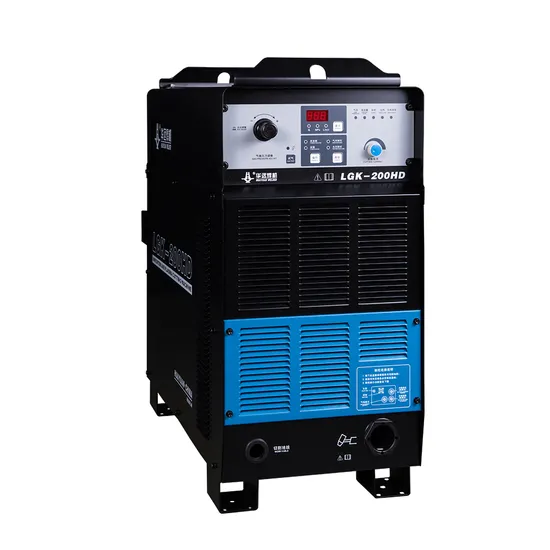

Inverter Air Plasma Cutting Machine (LGK-200HD) Huayuan CNC Plasma Cutting Machine

Product Description

Products Description Torch consumable life monitoringGas pressure and coolant flow display, detection, alarm, controlAdvance gas supply and delay gas
cut-off time are set independently.Automatic protection of overheat and undervoltage,The fault code is displayed automatically if
an exception occurs,Intelligent fan is used to reduce dust accumulation in the machine,LGK-120HD has mesh material cutting
function, suitable for cutting various forms of mesh workpieces.It is mainly used for cutting various metal materials such as
carbon steel, alloy steel and non-ferrous metals Widely used in industrial power plant installation, boiler pressure vessels,
metallurgy, petrochemical, shipbuilding, engineering machinery, steel structure manufacturing and other industries related to
metal cutting

Project name	unit	Model number(LGK-200HD)
Input power supply	V/Hz	3~380±15% 50/60
Rated input capacity	KVA	46.5
Rated input current	A	70.9
Rated output current	A	200
Rated output voltage	V	16
ated no-load voltage	V	360
Duration of rated load	_	100%(40
efficiency	_	92%
Power factor	_	0.78
Output current adjustment range	A	40~200
Arc voltage output signal ratio	_	1:1/1:20/1:50/1:100(System default: 1:1)
Mass cutting capability (Carbon steel)	mm	32 (500mm/min)
Maximum cutting capacity (carbon steel)	mm	45 (250mm/min)
Hand cutting capacity (carbon steel)	mm	65
Plasma gas	_	Compressed air
Gas supply pressure	MPa	0.5 ~ 0.8
Coolant operating flow rate	L/min	≥2.7
Cutting torch cooling method	_	Air cooling, water cooling
Arc starting mode	_	Non-contact arcing
Power cooling system	_	Air cooling
Insulation class	_	Grade F
Case protection class	_	IP21S
Overall dimensions (L × W × H)	mm	863*385*800
Net power weight	kg	86
