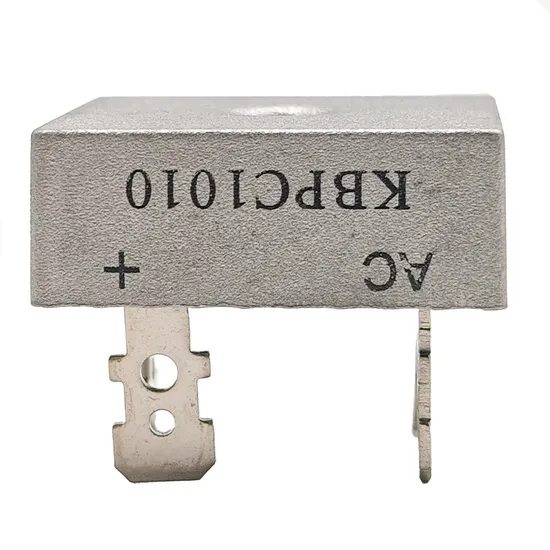

Kbpc1010 Bridge Rectifier 10 AMP Single Phase Bridge Rectifier

Product Description

Product Description Miniature universal dimensions, welding technique
under the protection of vacuum and hydrogen gas
Glass passivated diode chips
Excellent force and volume ratio
High thermal conductive sealing package
Typical Applications
Rectifier current
Industrial automatic control
Digital-controlled machine and remte control system

Product Parameters

Diode Bridgespecifications		KBPC1010
Output current	lo	10A
Max repetitive peak reverse blocking voltage	VRRM	1000 V
RMS reverse voltage	VR(RMS)	-
Non-repetitive surgecurrent	IFSM	180 A
Safety factor	I2t	135 A²·s
Forward voltage per diode	VFM	1.1V
Forward current per diode	IFM	5.0A
Typical junction capacitance	Gj	-
RMS isolation voltage	VisoL	-
Thermal resistance,junction to case	Rth(j-c)	-
Temperature of p-n junction	Tvj max	-55 to+150ºC
Wiring diagram (circuit diagram)		four diodes

Application DC power supply for instruments and equipment
Input for PWM inverter
DC power supply for battery charging
DC motor excitation power supply
Input rectification for switching power supplies
Electrical drag and auxiliary currents
Soft-start capacitor charging, inverter fluxing
Detailed Photos
