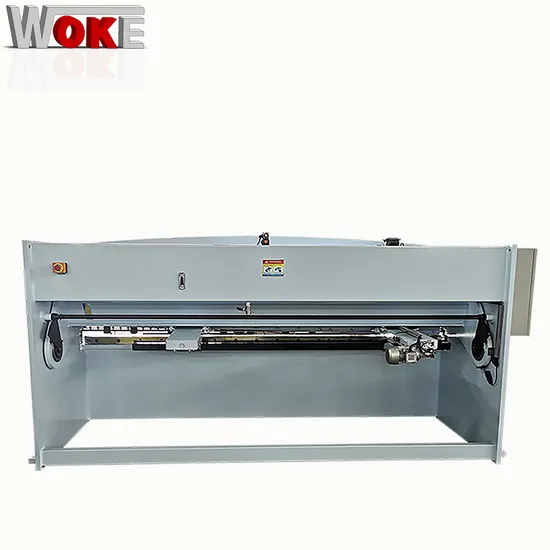

QC12y CNC Hydraulic Cutting Shearing Machine for Sheet Metal 6X4000
| US$9,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Condition
New
Warranty
2 Years
Main Motor
7.5kw
Control System
Estun E21 Nc
Cutting Thickness
6mm
Cutting Length
4000mm
Precision
High Precision
Hydraulic Valve
Germany Rexroth
Back Gauge
0-600mm
Transport Package
Nude Packing, Steel Pallet
Specification
4650x1850x1750mm
Trademark
WOKE
Origin
Nantong, Jiangsu, China
HS Code
8462399000
Production Capacity
40PCS/Month
Product Description
| No | Specification | Max.Shearing Thickness | Max.Shearing Width | Distance Between Uprights | Working Table Height | Strokes | Back Gauge Stroke | Shearing Angle | Throat Depth | Main Power | DIMENSION | |
| mm | mm | mm | mm | Min-1 | mm | ° | mm | kw | mm(L×W×H) | |||
| 1 | 4×1500 | 4 | 1500 | 1660 | 740 | 20 | 20-550 | 1°30' | 100 | 4 | 2000×1600×1550 | |
| 2 | 4×1600 | 4 | 1600 | 1760 | 740 | 18 | 20-550 | 1°30' | 100 | 4 | 2100×1600×1550 | |
| 3 | 4×2000 | 4 | 2000 | 2150 | 740 | 20 | 20-550 | 1°30' | 100 | 4 | 2500×1600×1550 | |
| 4 | 4×2500 | 4 | 2500 | 2700 | 740 | 18 | 20-550 | 1°30' | 100 | 4 | 3100×1600×1550 | |
| 5 | 4×3200 | 4 | 3200 | 3410 | 800 | 14 | 20-550 | 1°30' | 150 | 4 | 3800×1700×1650 | |
| 6 | 4×4000 | 4 | 4000 | 4220 | 800 | 10 | 20-550 | 1°30' | 150 | 5.5 | 4650×1900×1750 | |
| 7 | 4×4500 | 4 | 4500 | 4720 | 800 | 8 | 20-550 | 1°30' | 150 | 5.5 | 5150×1900×1750 | |
| 8 | 6×1500 | 6 | 1500 | 1660 | 780 | 20 | 20-550 | 1°30' | 150 | 7.5 | 2000×1760×1650 | |
| 9 | 6×2500 | 6 | 2500 | 2720 | 780 | 17 | 20-550 | 1°30' | 150 | 7.5 | 3100×1650×1600 | |
| 10 | 6×3200 | 6 | 3200 | 3420 | 800 | 14 | 20-550 | 1°30' | 150 | 7.5 | 3800×1750×1650 | |
| 11 | 6×4000 | 6 | 4000 | 4220 | 800 | 10 | 20-550 | 1°30' | 150 | 7.5 | 4650×1850×1750 | |
| 12 | 8×1500 | 8 | 1500 | 1660 | 800 | 20 | 20-550 | 1°30' | 150 | 7.5 | 2000×1860×1750 | |
| 13 | 8×2500 | 8 | 2500 | 2720 | 800 | 14 | 20-550 | 1°30' | 150 | 11 | 3100×1750×1700 | |
| 14 | 8×3200 | 8 | 3200 | 3440 | 800 | 10 | 20-550 | 1°30' | 150 | 11 | 3800×1850×1750 | |
| 15 | 8×4000 | 8 | 4000 | 4230 | 800 | 8 | 20-550 | 1°30' | 150 | 11 | 4600×1900×1800 | |
| 16 | 10×1500 | 8 | 1500 | 1660 | 800 | 20 | 20-550 | 1°30' | 150 | 11 | 2100×1860×1800 | |
| 17 | 10×2500 | 10 | 2500 | 2720 | 800 | 12 | 20-550 | 1°30' | 150 | 11 | 3100×1750×1700 | |
| 18 | 10×3200 | 10 | 3200 | 3440 | 800 | 10 | 20-550 | 1°30' | 150 | 11 | 3800×1850×1750 | |
| 19 | 10×4000 | 10 | 4000 | 4230 | 800 | 8 | 20-550 | 1°30' | 150 | 11 | 4600×1900×1800 | |
| 20 | 12×1500 | 12 | 1500 | 1680 | 800 | 14 | 20-550 | 2°9' | 150 | 15 | 2200×2000×1850 | |
| 21 | 12×2500 | 12 | 2500 | 2760 | 810 | 10 | 20-750 | 1°50' | 150 | 15 | 3200×2000×1850 | |
| 22 | 12×3200 | 12 | 3200 | 3465 | 810 | 10 | 20-750 | 1°45' | 150 | 22 | 3850×2150×2000 | |
| 23 | 12×4000 | 12 | 4000 | 4265 | 810 | 7 | 20-750 | 2° | 150 | 22 | 4700×2300×2100 | |
| 24 | 16×1500 | 16 | 1500 | 1680 | 800 | 10 | 20-550 | 2°30' | 150 | 22 | 2600×1950×1800 | |
| 25 | 16×2500 | 16 | 2500 | 2765 | 850 | 8 | 20-750 | 2°9' | 150 | 22 | 3200×2150×2050 | |
| 26 | 16×3200 | 16 | 3200 | 3455 | 860 | 7 | 20-750 | 2°9' | 150 | 22 | 4000×2300×2150 | |
| 27 | 16×4000 | 16 | 4000 | 4285 | 900 | 6 | 20-750 | 2°9' | 150 | 22 | 4850×2500×2350 | |
| 28 | 20×2500 | 20 | 2500 | 2815 | 860 | 6 | 20-750 | 2°30' | 150 | 30 | 3450×2350×2200 | |
| 29 | 20×3200 | 20 | 3200 | 3487 | 890 | 5 | 20-750 | 2°30' | 150 | 30 | 4050×2450×2250 | |
| 30 | 20×4000 | 20 | 4000 | 4305 | 990 | 5 | 20-750 | 2°20' | 150 | 30 | 4900×2300×2450 | |
| 31 | 25×2500 | 25 | 2500 | 2805 | 900 | 5 | 20-750 | 3°7' | 150 | 37 | 3450×2500×2350 | |
| 32 | 25×3200 | 25 | 3200 | 3505 | 900 | 5 | 20-800 | 3°7' | 150 | 37 | 4160×2600×2500 | |
| 33 | 30×2500 | 30 | 2500 | 2825 | 900 | 4 | 20-1000 | 3°12' | 200 | 45 | 3500×2650×2500 | |
| 34 | 30×3200 | 30 | 3200 | 3450 | 1000 | 4 | 20-1000 | 3°12' | 200 | 45 | 4350×3050×2800 | |
